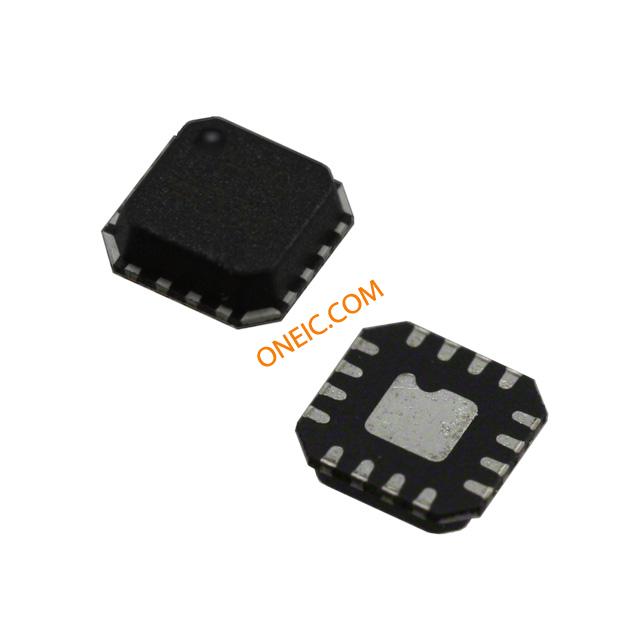

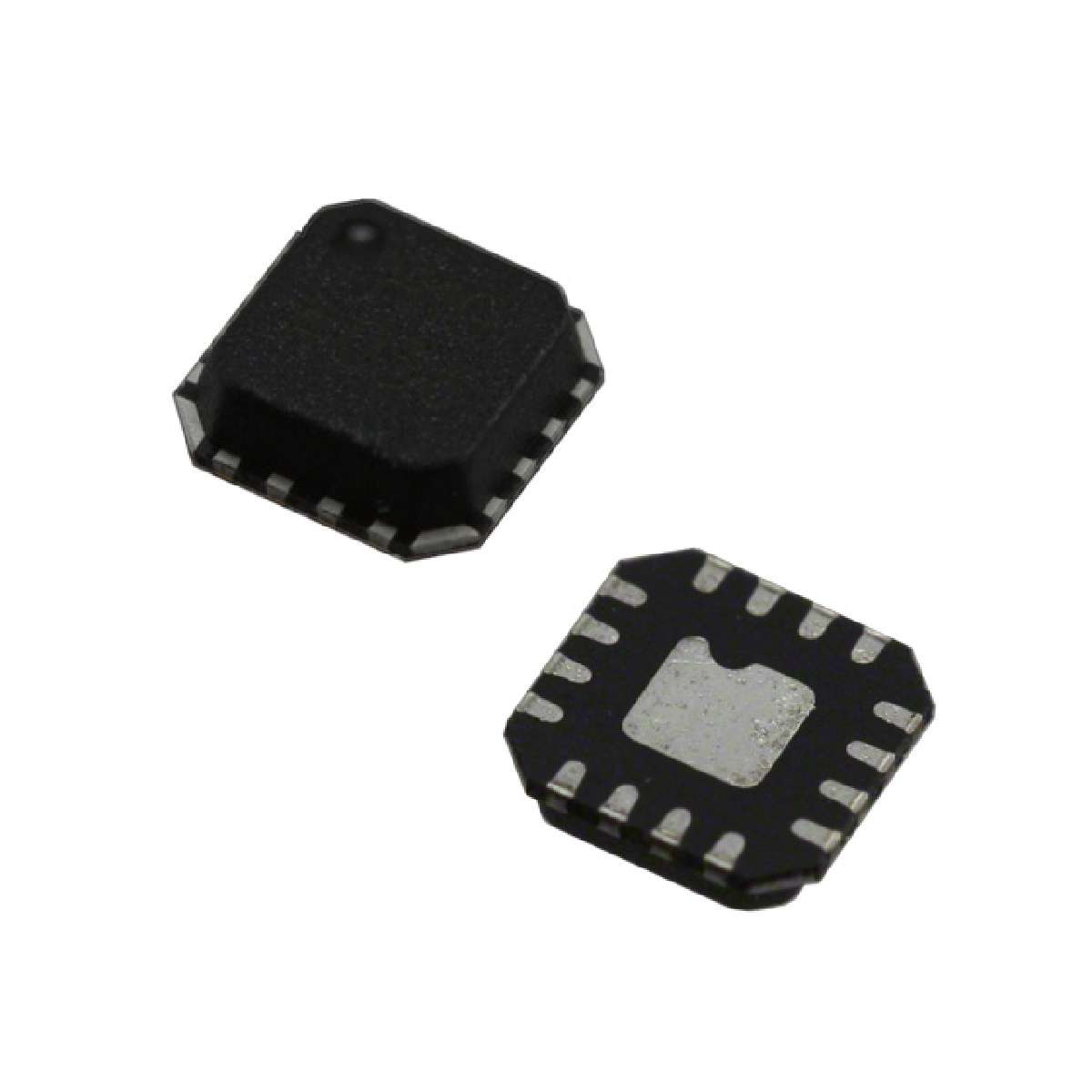

IC LED Driver DC DC Regulator PWM Dimming 30mA Backlight, Camera Flash 16-LFCSP-VQ 3x3
Product Details
The ADM8845 uses charge pump technology to provide the power required to drive up to six LEDs. The LEDs are used for backlighting a color LCD display, having regulated constant current for uniform brightness intensity. The main display can have up to four LEDs, and the sub display can have one or two LEDs. The digital CTRL1 and CTRL2 input control pins control the shutdown operation and the brightness of the main and sub displays.
To maximize power efficiency, the charge pump can operate in a 1×, 1.5×, or 2× mode. The charge pump automatically switches between 1×/1.5×/2× modes, based on the input voltage, to maintain sufficient drive for the LED anodes at the highest power efficiency
Improved brightness matching of the LEDs is achieved by a feedback pin to sense individual LED current with a maximum matching accuracy of 1%.
**Applications**
### Features and Benefits
频率 1.5 MHz
电源电压DC 5.50V max
输出接口数 6
输出电压 4.81 V
输出电流 30 mA
供电电流 5.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.6V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.6 V
输入电压 2.6V ~ 5.5V
安装方式 Surface Mount

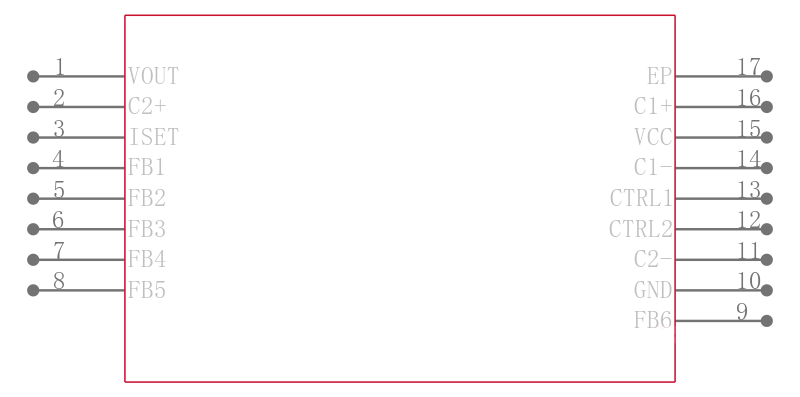

引脚数 16

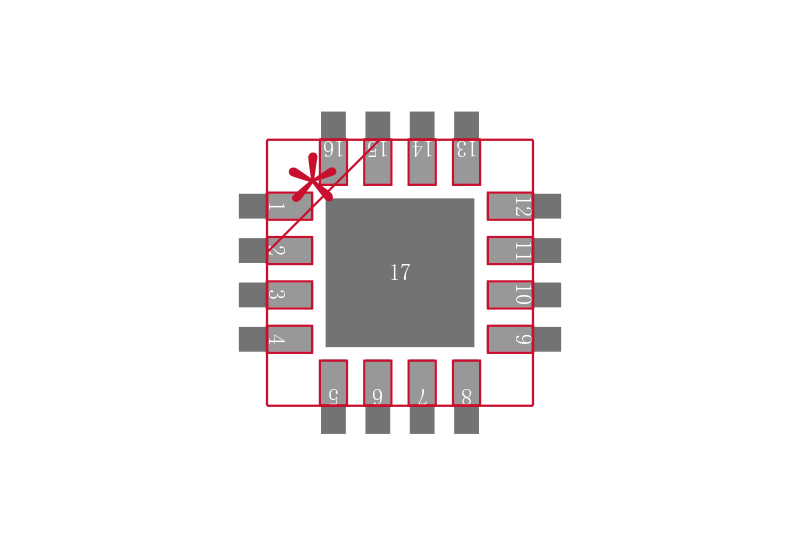

封装 VFQFN-16
封装 VFQFN-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Obsolete
包装方式 Tape & Reel TR
制造应用 背光,照相机闪光灯
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADM8845ACPZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
ADM8845ACPZ-REEL7 亚德诺 | 类似代替 | ADM8845ACPZ-REEL和ADM8845ACPZ-REEL7的区别 |
ADM8845ACP-REEL7 亚德诺 | 功能相似 | ADM8845ACPZ-REEL和ADM8845ACP-REEL7的区别 |
ADM8845ACP-REEL 亚德诺 | 功能相似 | ADM8845ACPZ-REEL和ADM8845ACP-REEL的区别 |
