ADM809SART-REEL7

ADM809SART-REEL7 电压检测器电源IC 2.93V SOT-23 marking/标记 9SE 监控电路3引脚,逻辑低电平复位输出（ADM809）

Product Details

The ADM809 supervisory circuit monitors the power supply voltage in microprocessor systems. It provides a reset output during power-up, power-down and brownout conditions. On power-up, an internal timer holds reset asserted for 240ms. This holds the microprocessor in a reset state until conditions have stabilized. The RESET output remains operational with VCC as low as 1V. The ADM809 provides an active-low reset signal RESET, and has a push-pull output stage.

Seven reset threshold options are available. The reset comparator features built-in glitch immunity, making it immune to fast transients on VCC.

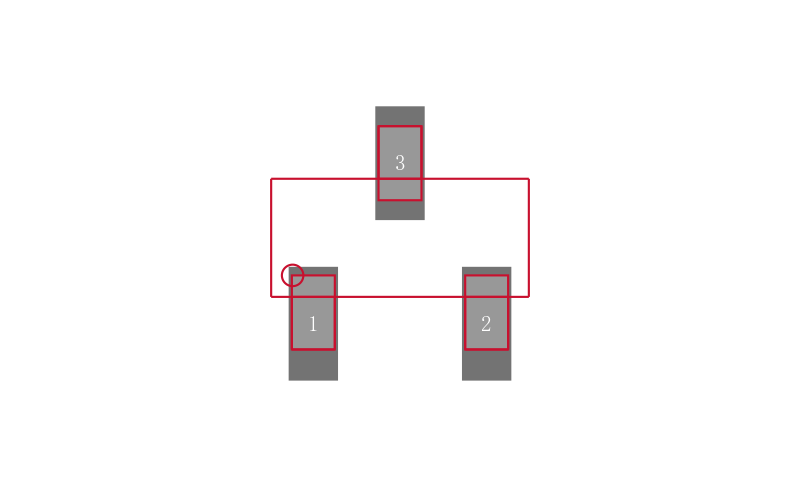

The ADM809 is available in 3-lead SOT-23 and SC70 and consumes only 17µA, making it suitable for low power portable equipment.

**Applications**

.

Microprocessor systems

.

Computers

.

Controllers

.

Intelligent instruments

.

Automotive systems

### Features and Benefits

.

Specified over Temperature

.

Low Power Consumption 17 µA

.

Precision Voltage Monitor: 2.5 V, 3 V, 3.3 V, 5 V Options

.

Reset Assertion Down to 1 V VCC

.

140 ms Min Power-On Reset

.

Push-Pull RESET Output

.

SC70 and SOT-23 Packages
