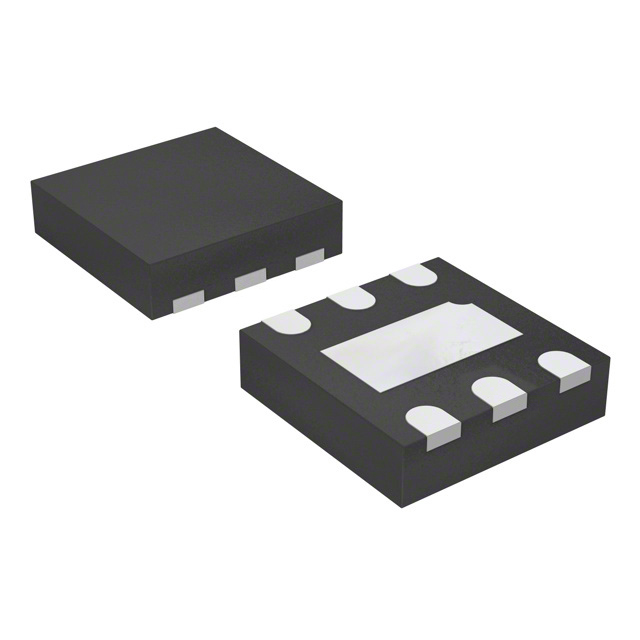

芯片, 稳压器, LDO, 可调, 1.2V至19V, 0.2A, LFCSP-6
PMIC - 稳压器 - 线性 正 可调式 输出 200mA 6-LFCSP-UD(2x2)
得捷:
IC REG LIN POS ADJ 200MA 6LFCSP
立创商城:
ADP7118ACPZN-R7
艾睿:
Say goodbye to unstable voltages with this LDO ADP7118ACPZN-R7 linear regulator from Analog Devices. Its typical dropout voltage at current is 0.03@10mA|0.2@200mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. Use this part at voltages between 2.7 V and 20 V. With an adjustable output that has a voltage of 1.5 to 5 V, this is power management at its best. At a load regulation of 0.005%/mA and line regulation of 0.01%/V your circuit is capable of maintaining a constant voltage level at your output. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. The maximum dropout voltage is 0.06@10mA|0.45@200mA V.
Verical:
LDO Regulator Pos 1.2V to 19V 0.2A 6-Pin LFCSP EP T/R
Win Source:
IC REG LIN POS ADJ 200MA 6LFCSP / Linear Voltage Regulator IC Positive Adjustable 1 Output 200mA 6-LFCSP-UD 2x2
输出接口数 1
输出电压 1.2V ~ 19.8V
输出电流 200 mA
针脚数 6
跌落电压 0.2V @200mA,0.03V @10mA
输入电压Max 20 V
输入电压Min 2.7 V
输出电压Max 19.58 V
输出电压Min 1.2 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.8 %
输入电压 2.7V ~ 20V
安装方式 Surface Mount
引脚数 6
封装 LFCSP-6
封装 LFCSP-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Aerospace and Defense, Radar
RoHS标准 RoHS Compliant
含铅标准 Lead Free
