ANALOG DEVICES ADM6823RYRJZ-RL7 监控器电路, 手动复位, 低电平有效复位, 1V-5.5V输入, SOT-23-5
Your circuit won"t fail if its main processor goes out thanks to this microprocessor supervisory circuit from Analog Devices. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 2.63 V, with a minimum of 2.55 V and a maximum of 2.7 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 1.00V min
供电电流 0.02 mA
针脚数 5
阈值电压 2.63 V
复位电压Min 2.55 V
复位电压Max 2.7 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 5

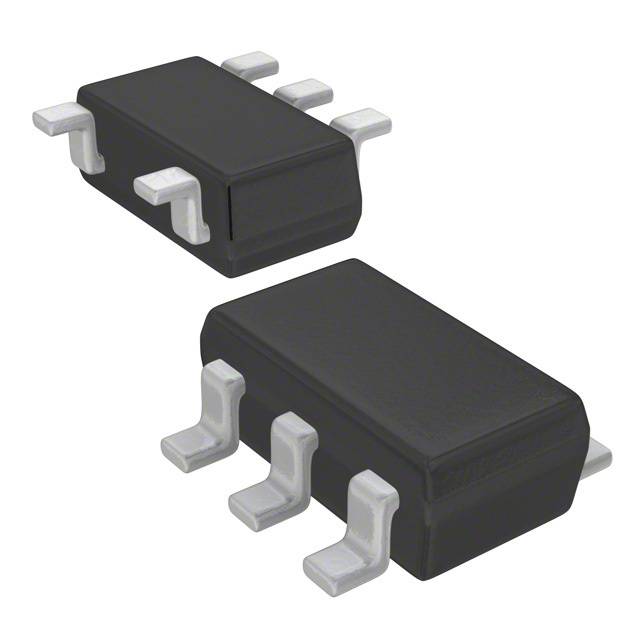

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM6823RYRJZ-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
MAX6823RUK+T 美信 | 功能相似 | ADM6823RYRJZ-RL7和MAX6823RUK+T的区别 |
AS1916R-T 奥地利微电子 | 功能相似 | ADM6823RYRJZ-RL7和AS1916R-T的区别 |
MAX6823RUK+ 美信 | 功能相似 | ADM6823RYRJZ-RL7和MAX6823RUK+的区别 |
