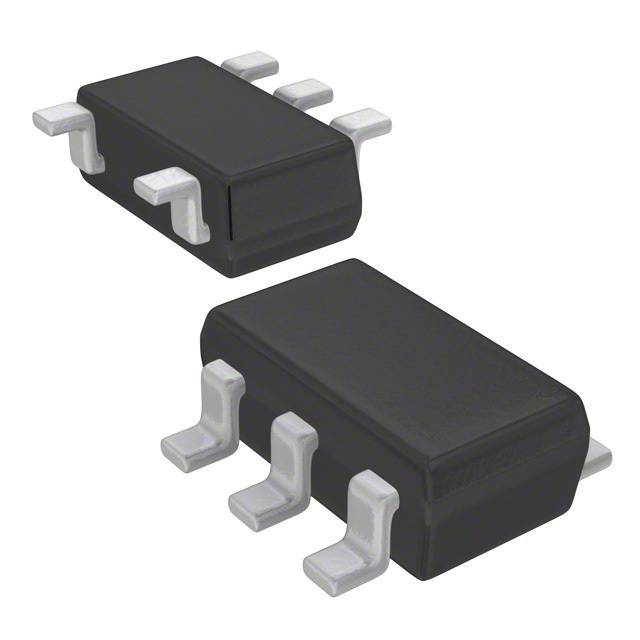

ANALOG DEVICES ADM6823SYRJZ-RL7 监控器电路, 手动复位, 低电平有效复位, 1V-5.5V输入, SOT-23-5
The ADM6823 series low-voltage Supervisory Circuit with watchdog and manual reset. The supervisory circuit monitors power supply voltage levels and code execution integrity in microprocessor-based systems. As well as providing power-on reset signals, an on-chip watchdog timer can reset the microprocessor if it fails to strobe within a preset timeout period. A reset signal can also be asserted by means of an external push-button through a manual reset input. The reset and watchdog timeout periods are fixed at 140ms minimum and 1.6 seconds typical, respectively.
- .
- Precision low voltage monitoring
- .
- Reset output stage
- .
- Push-pull active-low
- .
- Power supply glitch immunity
- .
- Guaranteed reset output valid to VCC=1V
- .
- 7µA Low power consumption
电源电压DC 1.00V min
供电电流 20.0 µA
针脚数 5
阈值电压 2.93 V
复位电压Min 2.85 V
复位电压Max 3 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automation & Process Control, 自动化与过程控制, Sensing & Instrumentation, 电源管理, 便携式器材, Computers & Computer Peripherals, Power Management, 传感与仪器, Portable Devices, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
