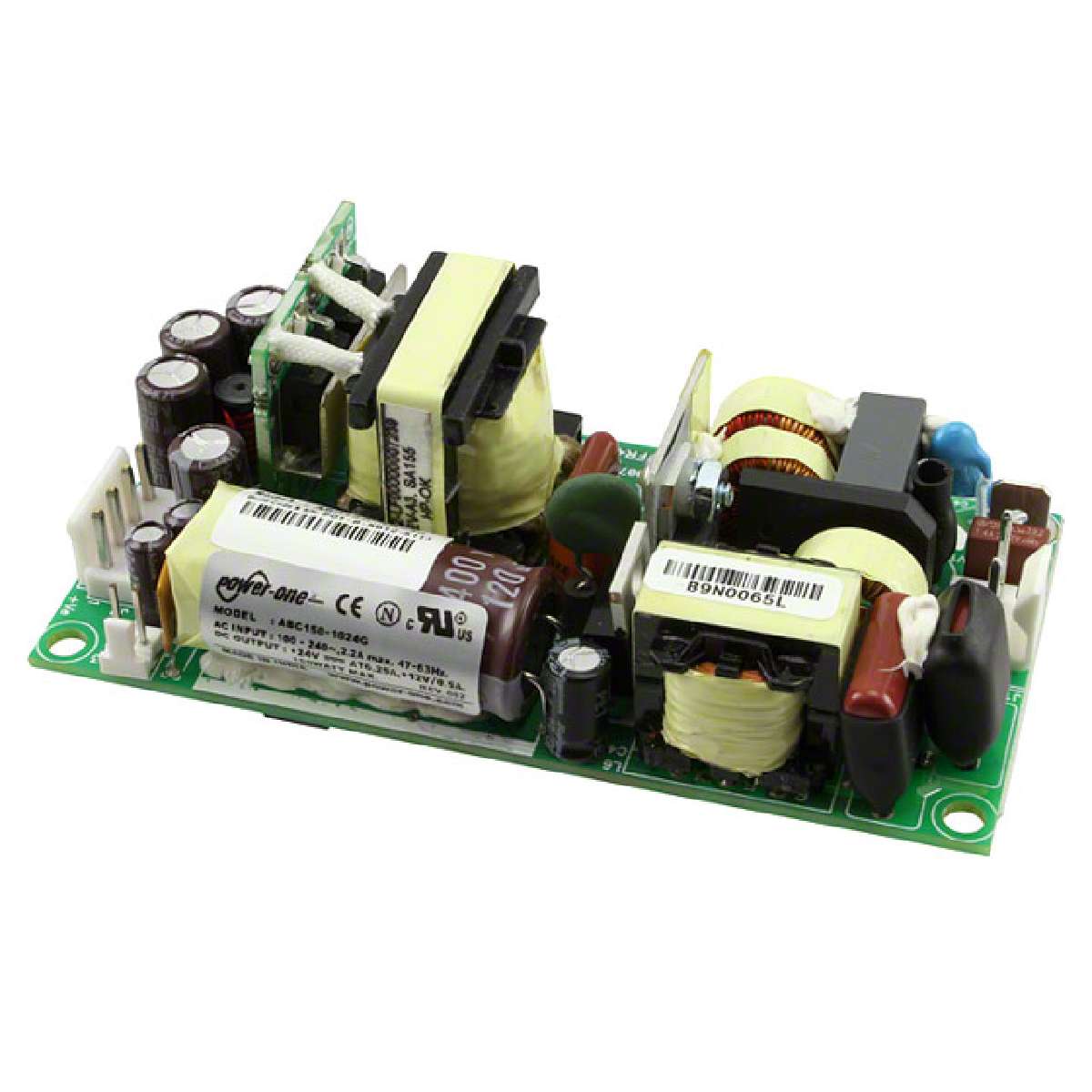

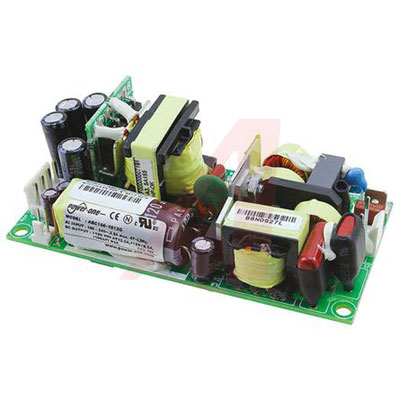

AC-DC Power Supply Single-OUT 15V 6.67A 150W
****
ABC150 series are 150W open frame switch mode power supplies with a single output. Their high efficiency allows a very minimal power loss in end equipment. These compact and efficient ac-dc embedded switch mode power supplies SMPS are suitable for use in telecommunication, datacommunication and industrial equipment.
得捷:
AC/DC CONVERTER 15V 110/150W
贸泽:
Switching Power Supplies 150W 15V 6.67A Header Type
艾睿:
AC/DC Power Supply Single-OUT 15V 6.67A 150W
Allied Electronics:
Power Supply; AC-DC; 15V@6.67A; 90-264V In; Open Frame; Panel Mount; ABC Series
输出接口数 1
输出电压 15 V
输出电流 6.67 A
输出功率 150 W
隔离电压 4.242 kV
输入电压DC Max 390 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 90 V
输出电流Max 6.67 A
输入电流Min 1.7 A
工作温度Max 70 ℃
工作温度Min -20 ℃
输入电压 90VAC ~ 264VAC
长度 101.6 mm
宽度 50.8 mm
高度 33.02 mm
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
