监控电路 RESET GENERATORS I.C.
Using the microprocessor supervisory circuit from Analog Devices will make sure your circuit is protected from any emergencies. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This part has an operating temperature range of -40 °C to 125 °C. It has a typical reset threshold voltage of 4.38 V, with a minimum of 4.31 V and a maximum of 4.45 V.
电源电压DC 5.50V max
供电电流 0.06 mA
阈值电压 4.38 V
复位电压Min 4.31 V
复位电压Max 4.45 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Min 1 V
安装方式 Surface Mount

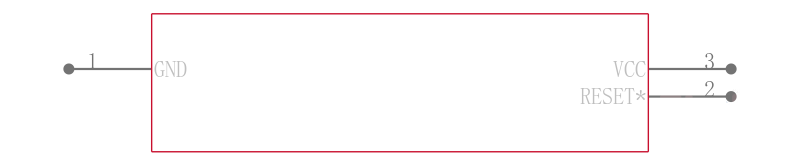

引脚数 3
封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 0.95 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Radar, Aerospace and Defense
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM809MARTZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
ADM809MARTZ-REEL7 亚德诺 | 完全替代 | ADM809MARTZ-REEL和ADM809MARTZ-REEL7的区别 |
CAT809MTBI-T3 安森美 | 类似代替 | ADM809MARTZ-REEL和CAT809MTBI-T3的区别 |
ADM809MART-REEL 亚德诺 | 类似代替 | ADM809MARTZ-REEL和ADM809MART-REEL的区别 |
