LDO(低压降)线性电压调节器,3.xV 输出,Analog Devices### LDO(低压降)线性电压调节器 - Analog Devices低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,3.xV 输出,Analog Devices
Analog Devices 低压降(LDO)线性调节器提供快速瞬态响应、极佳的线路和负载调节,并且具有宽输入电压范围。
得捷:
IC REG LINEAR 3.3V 300MA 8MSOP
立创商城:
ADP3333ARMZ-3.3-R7
欧时:
Analog Devices ADP3333ARMZ-3.3-R7 LDO 稳压器, 3.3 V输出, 600mA最大输出, ±0.8%精确度
e络盟:
固定电压稳压器, LDO, 2.6V至12V, 140mV压差, 3.3V输出, 300mA输出, MSOP-8
艾睿:
Keep calm and stay stable by implementing this LDO ADP3333ARMZ-3.3-R7 linear regulator developed by Analog Devices. It has an overall accuracy of ±0.8 %. Its typical dropout voltage at current is 0.14@300mA|0.105@200mA|0.03@100uA V. This voltage regulation device&s;s single output can produce a current up to 0.6Typ A. Use this part at voltages between 2.6 V and 12 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. At a load regulation of 0.04mV/mATyp and line regulation of 0.04mV/VTyp a constant current can be produced at the output of your circuit. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. The maximum dropout voltage is 0.23@300mA|0.185@200mA V. This voltage regulation device has an operating temperature range of -40 °C to 85 °C.
Chip1Stop:
LDO Regulator Pos 3.3V 0.6A 8-Pin MSOP T/R
Verical:
LDO Regulator Pos 3.3V 0.3A 8-Pin MSOP T/R
Newark:
# ANALOG DEVICES ADP3333ARMZ-3.3-R7 Fixed LDO Voltage Regulator, 2.6V to 12V, 140mV Dropout, 3.3Vout, 300mAout, MSOP-8
DeviceMart:
IC REG LDO 3.3V .3A 8-MSOP
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 300mA 8-MSOP
输出接口数 1
输出电压 3.3 V
输出电流 300 mA
供电电流 5.50 mA
针脚数 8
静态电流 0.07 mA
跌落电压 140 mV
输入电压Max 12 V
输入电压Min 2.6 V
输出电压Min 3.3 V
输出电流Max 600 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.8 %
输入电压 12 V
安装方式 Surface Mount
引脚数 8

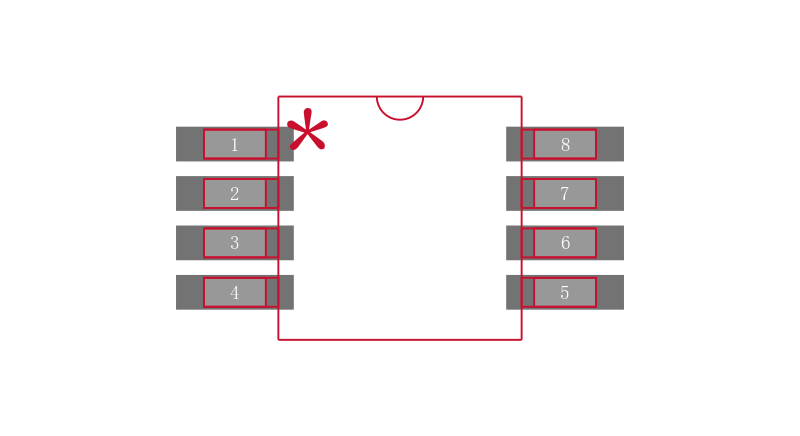

封装 MSOP-8
长度 3 mm
宽度 3 mm
高度 0.85 mm
封装 MSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Portable Devices, 电源管理, 便携式器材, Computers & Computer Peripherals, Power Management, 消费电子产品, Consumer Electronics, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP3333ARMZ-3.3-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP3333ARM-3.3-RL7 亚德诺 | 完全替代 | ADP3333ARMZ-3.3-R7和ADP3333ARM-3.3-RL7的区别 |
ADP3333ARMZ-3.3-RL 亚德诺 | 完全替代 | ADP3333ARMZ-3.3-R7和ADP3333ARMZ-3.3-RL的区别 |
ADP3333ARM-3.3-RL 亚德诺 | 完全替代 | ADP3333ARMZ-3.3-R7和ADP3333ARM-3.3-RL的区别 |
