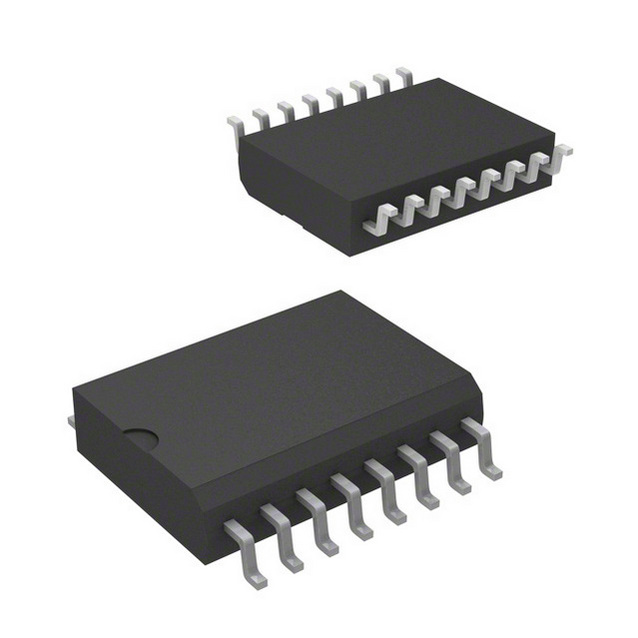

ADM1232ARWZ-REEL7

Processor Supervisor 4.62V/4.37V 4.5V/4.75V 16Pin SOIC W T/R

Product Details

The ADM1232 is pin-compatible with the MAX1232, DS1232LP, and DS1232. The Analog Devices, Inc., ADM1232 is a micro-processor monitoring circuit that can monitor the following:

.

Microprocessor supply voltage

.

Whether a microprocessor has locked up

.

External interrupts

The ADM1232 is available in four packages: an 8-lead MSOP RM-8, an 8-lead PDIP N-8, a 16-lead wide SOIC RW-16, and an 8-lead narrow SOIC R-8.

**Applications**

.

Microprocessor systems

.

Portable equipment

.

Computers

.

Controllers

.

Intelligent instruments

.

Automotive systems

### Features and Benefits

.

Pin-compatible with MAX1232 and Dallas DS1232

.

Adjustable precision voltage monitor with 4.5 V and 4.75 V options

|

.

Adjustable strobe monitor with 150 ms, 600 ms, or 1.2 sec options

.

No external components

.

Specified from −40°C to +85°C

---|---
