ANALOG DEVICES ADP3630ARMZ-R7 驱动器, MOSFET, 低压侧, 9.5V-18V电源, 2A输出, 14ns延迟, MSOP-8
GENERAL DESCRIPTION
The ADP3629/ADP3630/ADP3631 are dual, high current, high speed drivers, capable of driving two independent N-channel power MOSFETs. The ADP3629/ADP3630/ADP3631 use the industry-standard footprint but add high speed switching performance and improved system reliability.
The ADP3629/ADP3630/ADP3631 have an internal temperature sensor and provide two levels of overtemperature protection: an overtemperature warning and an overtemperature shutdown at extreme junction temperatures.
FEATURES
Industry-standard-compatible pinout
High current drive capability
Precise threshold shutdown comparator
UVLO with hysteresis
Overtemperature warning signal
Overtemperature shutdown
3.3 V-compatible inputs
Rise time and fall time: 10 ns typical at 2.2 nF load
Fast propagation delay
Matched propagation delays between channels
Supply voltage: 9.5 V to 18 V
Dual outputs can be operated in parallel ADP3629/ADP3630
Rated from −40°C to +85°C ambient temperature
8-lead SOIC_N and 8-lead MSOP
APPLICATIONS
AC-to-DC switch mode power supplies
DC-to-DC power supplies
Synchronous rectification
Motor drives
电源电压DC 9.50V min
上升/下降时间 10 ns
输出接口数 2
输出电流 2 A
供电电流 1.2 mA
针脚数 8
上升时间 14 ns
下降时间 25 ns
下降时间Max 25 ns
上升时间Max 25 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 9.5V ~ 18V
电源电压Max 18 V
电源电压Min 9.5 V
安装方式 Surface Mount
引脚数 8

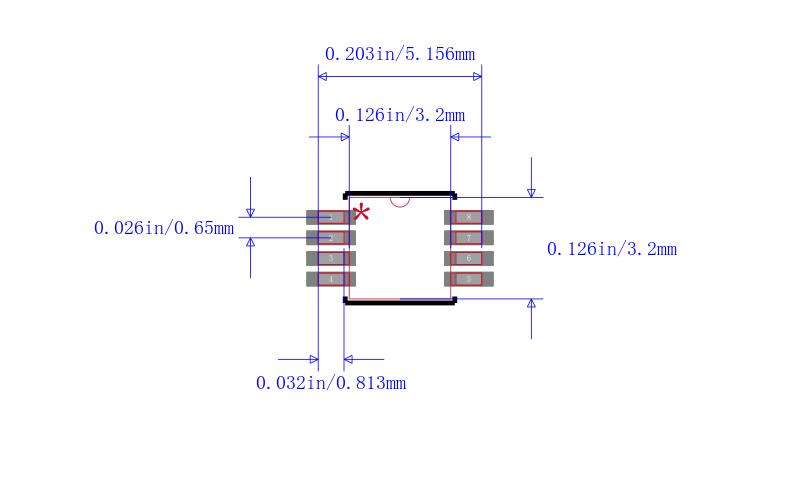

封装 MSOP-8
长度 3 mm
宽度 3 mm
高度 0.85 mm
封装 MSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP3630ARMZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP3630ARZ-R7 亚德诺 | 类似代替 | ADP3630ARMZ-R7和ADP3630ARZ-R7的区别 |
