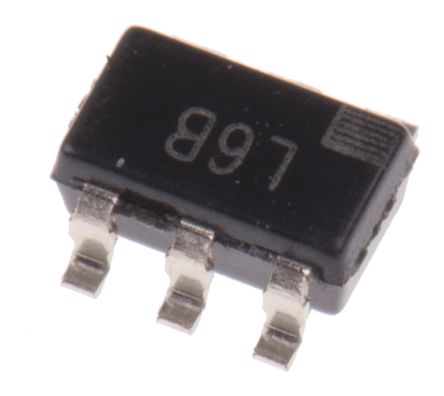

ADP3330ARTZ-3.6-R7

ANALOG DEVICES  ADP3330ARTZ-3.6-R7  固定电压稳压器, LDO, 2.9V至12V, 140mV压差, 3.6V输出, 200mA输出, SOT-23-6

LDO（低压降）线性稳压器，3.xV 输出，Analog Devices

Analog Devices 低压降（LDO）线性调节器提供快速瞬态响应、极佳的线路和负载调节，并且具有宽输入电压范围。

得捷:
IC REG LINEAR 3.6V 200MA SOT23-6

立创商城:
ADP3330ARTZ-3.6-R7

欧时:
LDO（低压降）线性稳压器，3.xV 输出，Analog DevicesAnalog Devices 低压降（LDO）线性调节器提供快速瞬态响应、极佳的线路和负载调节，并且具有宽输入电压范围。### LDO（低压降）线性电压调节器 - Analog Devices低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

e络盟:
固定电压稳压器, LDO, 2.9V至12V, 140mV压差, 3.6V输出, 200mA输出, SOT-23-6

艾睿:
Control the voltage level of your circuit with this LDO ADP3330ARTZ-3.6-R7 linear regulator from Analog Devices. It has an overall accuracy of ±0.7 %. Its typical dropout voltage at current is 0.025@1mA|0.14@200mA|0.11@150mA|0.042@10mA V. This voltage regulation device&s;s single output can produce a current up to 0.3Typ A. Use this part at voltages between 2.9 V and 12 V. With a fixed output that has a voltage of 3.6 V, this is power management at its best. At a load regulation of 0.04mV/mATyp and line regulation of 0.04mV/VTyp a constant current can be produced at the output of your circuit. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.4@200mA|0.3@150mA|0.06@10mA|0.05@1mA V.

Chip1Stop:
LDO Regulator Pos 3.6V 0.3A 6-Pin SOT-23 T/R

Verical:
LDO Regulator Pos 3.6V 0.2A 6-Pin SOT-23 T/R

Newark:
# ANALOG DEVICES  ADP3330ARTZ-3.6-R7  Fixed LDO Voltage Regulator, 2.9V to 12V In, 140mV Dropout, 3.6V/200mA Out, SOT-23-6
