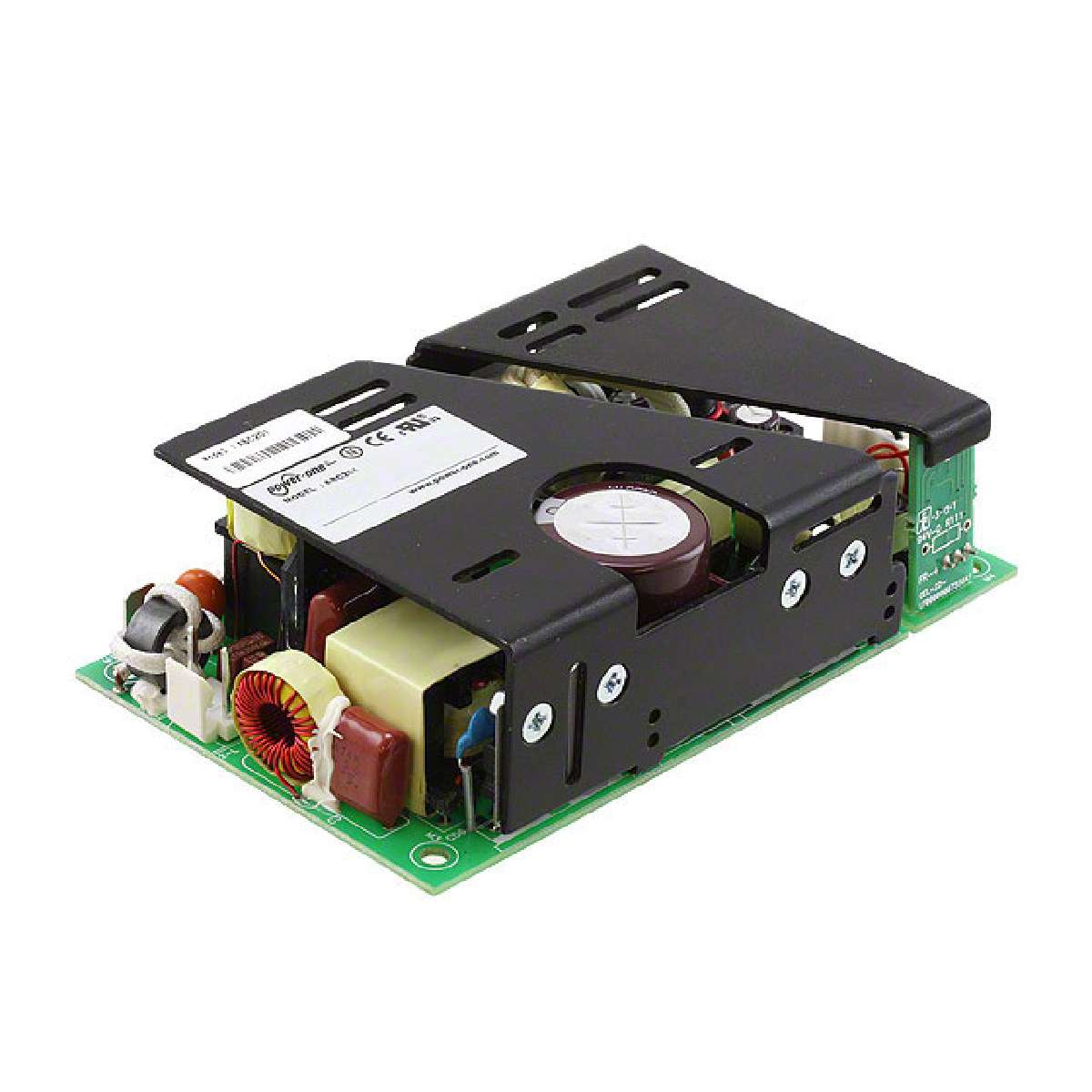

开关电源 200W 15V 10.66A
**ABC200 Series**
ABC200 series are 200W open frame switch mode power supplies with a single output. Their high efficiency allows a very minimal power loss in end equipment. These compact and efficient ac-dc embedded switch mode power supplies SMPS are suitable for use in telecom datacom industrial equipment.
得捷:
AC/DC CONVERTER 15V 160/200W
贸泽:
开关电源 200W 15V 10.66A
艾睿:
AC/DC Power Supply Single-OUT 15V 10.66A 200W
Allied Electronics:
Power Supply; AC-DC; 15V@10.66A; 90-264V In; Open Frame; Panel Mount; ABC Series
输出接口数 1
输出电压 15 V
输出电流 10.66 A
输出功率 200 W
隔离电压 4.242 kV
输入电压DC Max 390 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 90 V
输出电流Max 10.66 A
输入电流Min 2.4 A
额定功率Max 160 W
工作温度Max 70 ℃
工作温度Min -20 ℃
输入电压 90VAC ~ 264VAC
安装方式 Chassis
长度 127 mm
宽度 76.2 mm
高度 38.1 mm
工作温度 -20℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
