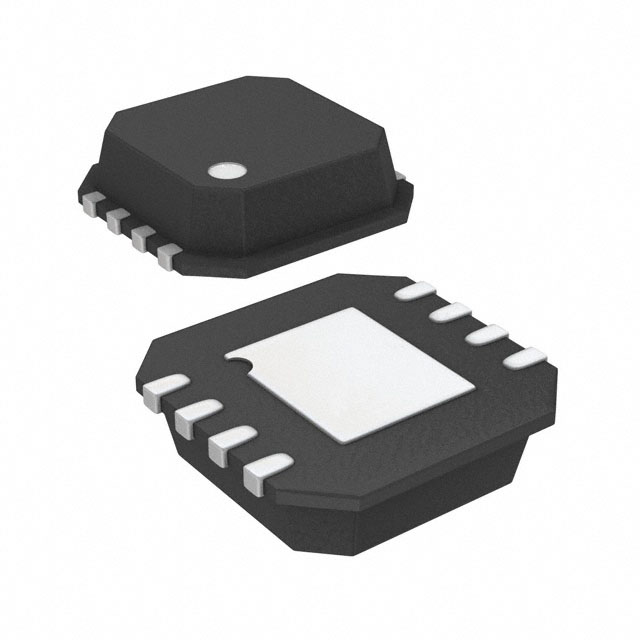

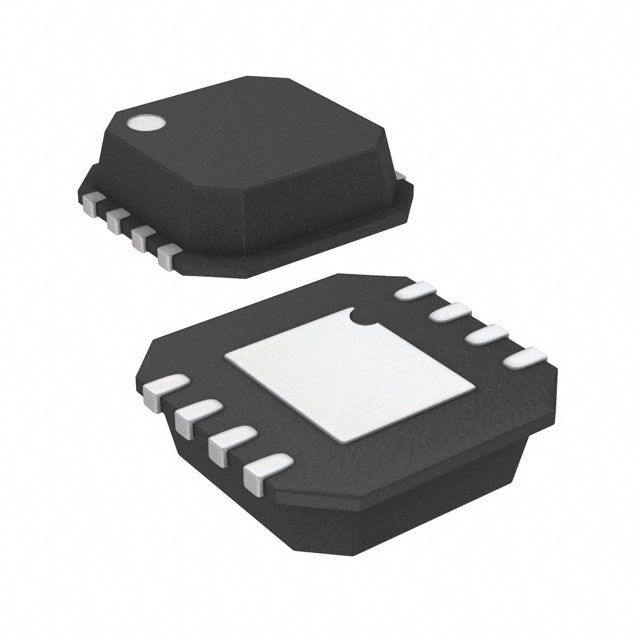

高精度,超低智商500毫安,公司的anyCAP低压差稳压器 High Accuracy, Ultralow IQ, 500 mA, anyCAP Low Dropout Regulator
Make a theoretical system actual by providing stable voltages with this LDO linear regulator from Analog Devices. Its typical dropout voltage at current is 0.2@500mA|0.14@300mA|0.03@50mA|0.01@100uA V. It has an overall accuracy of ±0.9 %. This voltage regulation device"s single output can produce a current up to 0.5 A. With a small input voltage of 2.6 V and a max of 12 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. A load regulation of 0.04mV/mATyp and line regulation of 0.04mV/VTyp is necessary for providing a constant voltage level at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.37@500mA|0.23@300mA|0.11@50mA|0.04@100uA V.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP3335ACPZ-1.8-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP3335ACP-1.8-RL7 亚德诺 | 完全替代 | ADP3335ACPZ-1.8-R7和ADP3335ACP-1.8-RL7的区别 |
ADP3335ACP-1.8-RL 亚德诺 | 完全替代 | ADP3335ACPZ-1.8-R7和ADP3335ACP-1.8-RL的区别 |
