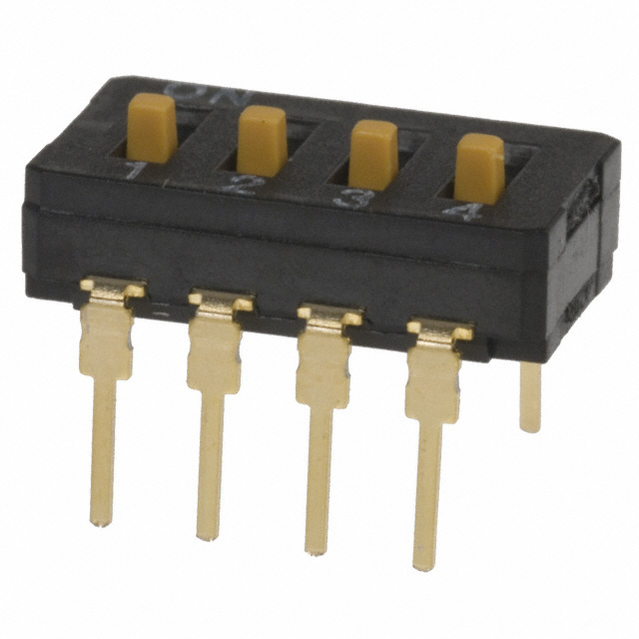

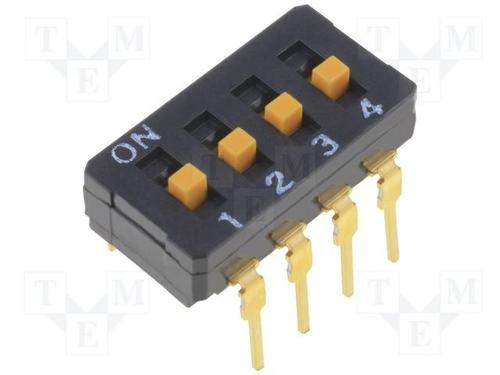

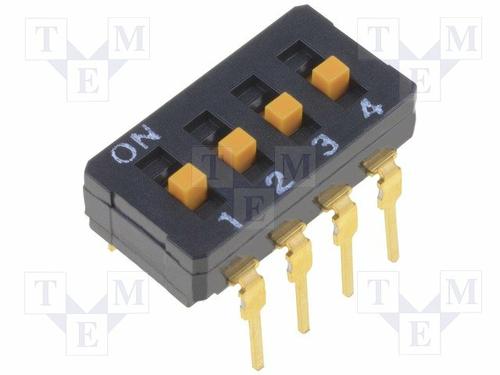

A6D-4103

DIP 开关/ SIP 开关 4 PIN SEALED RSD ACT

DIP SPST 4 位置 通孔 滑动式（标准） 触动器 30mA 30VDC

得捷:
SWITCH SLIDE DIP SPST 30MA 30V

贸泽:
DIP 开关/ SIP 开关 4 PIN SEALED RSD ACT

艾睿:
By acting as a series of switches, the A6D4103 dual in-line package switch from Omron is the ideal component for use on a printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.03 A @ 30VDC. This DIP switch has a minimum operating temperature of -20 °C and a maximum of 70 °C. The A6D4103 DIP switch has a PC pin termination style. This product is 12.2 mm long, 5.4 mm tall and 7.62 mm deep. The maximum DC voltage rating is 30 VDC. This product&s;s terminal pitch is 2.54 mm.

Allied Electronics:
SWITCH, DIP, SUBMINIATURE, RAISED ACTUATOR, 4 POSITIONS, 12.2MM

Chip1Stop:
Switch DIP ON OFF SPST 4 Raised Slide 0.1A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Tube

TME:
Switch: DIP-SWITCH; Poles number:4; ON-OFF; 0.03A/30VDC; -20÷70°C

Newark:
# OMRON ELECTRONIC COMPONENTS  A6D-4103  Slide Switch,STRAIGHT,4PST,ON-OFF,Number Of Positions:2,PC TAIL Terminal,PCB Hole Count:8

MASTER:
Switch DIP OFF ON SPST 4 Raised Slide 0.03A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP OFF ON SPST 4 Raised Slide 0.03A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Tube
