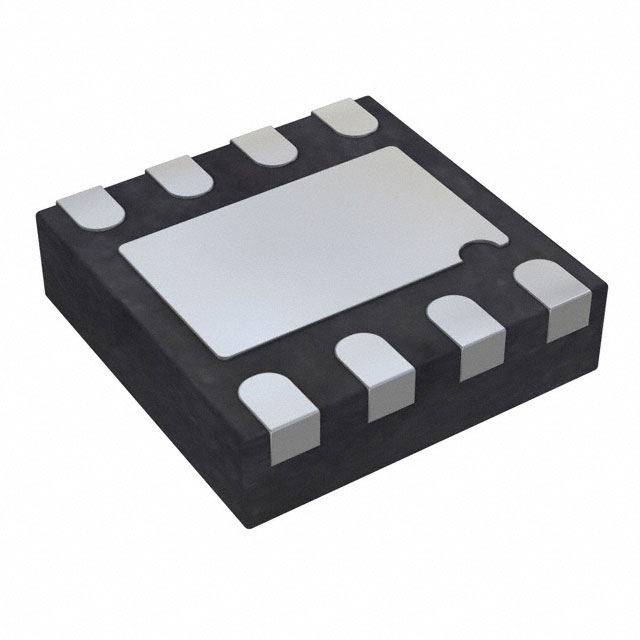

LDO Regulator Pos 1.8V 0.5A 8Pin LFCSP EP T/R
Product Details
The ADM7170 is a CMOS, low dropout linear regulator LDO that operates from 2.3 V to 6.5 V and provides up to 500 mA of output current. This high output current LDO is ideal for regulation of high performance analog and mixed signal circuits operating from 6 V down to 1.2 V rails. Using an advanced proprietary architecture, the device provides high power supply rejection and low noise, and achieves excellent line and load transient response with just a small 4.7 μF ceramic output capacitor. Load transient response is typically 1.5 μs for a 1 mA to 500 mA load step.
The ADM7170 is available in 17 fixed output voltage options. The following voltages are available from stock: 1.3 V, 1.8 V, 2.5 V, 3.0 V, 3.3 V, 4.2 V, and 5.0 V. Additional voltages that are available by special order are: 1.5 V, 1.85 V, 2.0 V, 2.2 V, 2.7 V, 2.75 V, 2.8 V, 2.85 V, 3.8 V, and 4.6 V. An adjustable version is also available that allows output voltages that range from 1.2 V to VIN − VDO with an external feedback divider.
Inrush current can be controlled by adjusting the start-up time via the soft start pin. The typical start-up time with a 1 nF soft start capacitor is about 1.0 ms.
The ADM7170 regulator output noise is 5 μV rms independent of the output voltage. The ADM7170 is available in an 8-lead, 3 mm × 3 mm LFCSP, making it not only a very compact solution, but also providing excellent thermal performance for applications requiring up to 500 mA of output current in a small, low profile footprint.
**Applications**
precision amplifiers, PLLs/VCOs, and clocking ICs
### Features and Benefits
输出接口数 1
输出电压 1.8 V
输出电流 500 mA
跌落电压 0.042V @500mA
输入电压Max 6.5 V
输入电压Min 2.3 V
输出电压Min 1.8 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.75 %
输入电压 2.3V ~ 6.5V
安装方式 Surface Mount
引脚数 8
封装 LFCSP EP-8
封装 LFCSP EP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Radar, Aerospace and Defense
RoHS标准 RoHS Compliant
含铅标准 Lead Free
