0.8 A ,低输入电压,低压差线性稳压器 0.8 A, Low VIN, Low Dropout Linear Regulator
Product Details
The ADP1752/ADP1753 are CMOS, low dropout linear regulators that operate from 1.6 V to 3.6 V and provide up to 800mA of output current. These low Vin / Vout LDOs are ideal for regulation of nanometer FPGA geometries operating from 2.5V down to 1.8V I/O rails, and powering core voltages down to 0.75V. Using an advanced proprietary architecture, they provide high power supply rejection, low noise, and achieve excellent line and load transient response with a small 4.7 µF ceramic output capacitor. The ADP1752 is available in 7 fixed output voltage options.The ADP1753 is available in an adjustable version, which allows output voltages that range from 0.75 V to 3.0 V via an external divider. The ADP1752/ADP1753 allows an external soft start capacitor to be connected to program the start-up. A power good output allows power system monitors to digitally check the health of the output power rail voltage.

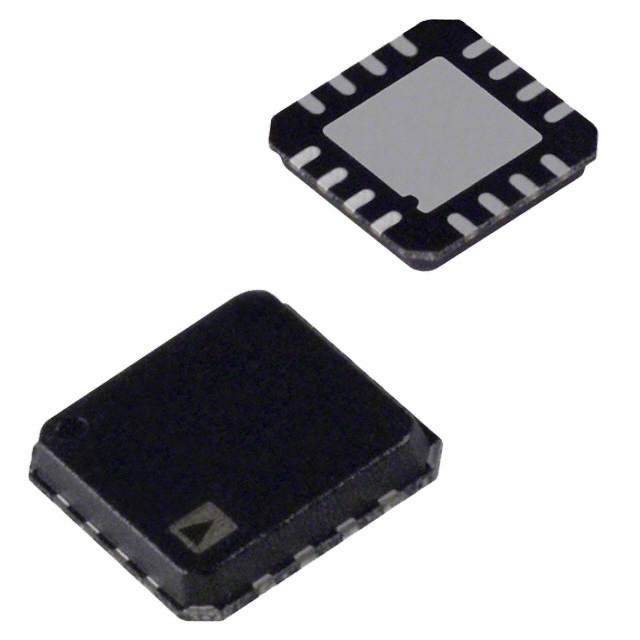

The ADP1752/ADP1753 are available in a 16-lead, 4 mm × 4 mm LFCSP, making them not only very compact solutions, but also providing excellent thermal performance for applications requiring up to 800mA of output current in a small, low profile footprint.
### Features and Benefits
See data sheet for details
输出接口数 1
输出电压 1.1 V
输出电流 800 mA
供电电流 1.40 mA
跌落电压 0.01V @100mA,0.07V @0.8A
输入电压Max 3.6 V
输入电压Min 1.6 V
输出电压Min 1.1 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 1.6V ~ 3.6V
安装方式 Surface Mount
引脚数 16
封装 LFCSP EP-16
封装 LFCSP EP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP1752ACPZ-1.1-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP1754ACPZ-1.1-R7 亚德诺 | 类似代替 | ADP1752ACPZ-1.1-R7和ADP1754ACPZ-1.1-R7的区别 |
ADP1740ACPZ-1.1-R7 亚德诺 | 类似代替 | ADP1752ACPZ-1.1-R7和ADP1740ACPZ-1.1-R7的区别 |
