ADP1752ACPZ-0.75R7

0.8 A ，低输入电压，低压差线性稳压器 0.8 A, Low VIN, Low Dropout Linear Regulator

Product Details

The ADP1752/ADP1753 are CMOS, low dropout linear regulators that operate from 1.6 V to 3.6 V and provide up to 800mA of output current. These low Vin / Vout LDOs are ideal for regulation of nanometer FPGA geometries operating from 2.5V down to 1.8V I/O rails, and powering core voltages down to 0.75V. Using an advanced proprietary architecture, they provide high power supply rejection, low noise, and achieve excellent line and load transient response with a small 4.7 µF ceramic output capacitor. The ADP1752 is available in 7 fixed output voltage options.The ADP1753 is available in an adjustable version, which allows output voltages that range from 0.75 V to 3.0 V via an external divider. The ADP1752/ADP1753 allows an external soft start capacitor to be connected to program the start-up. A power good output allows power system monitors to digitally check the health of the output power rail voltage.

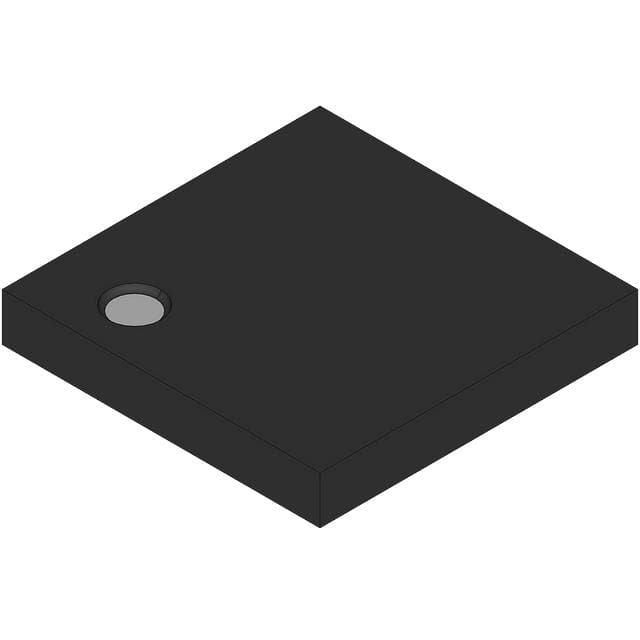

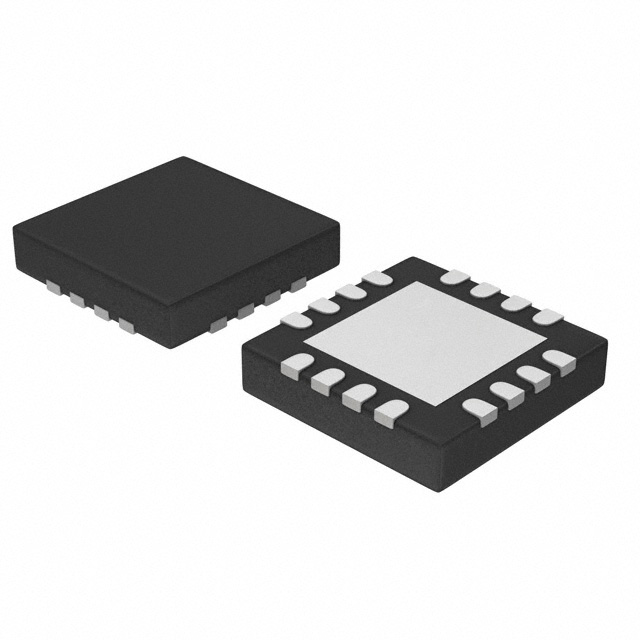

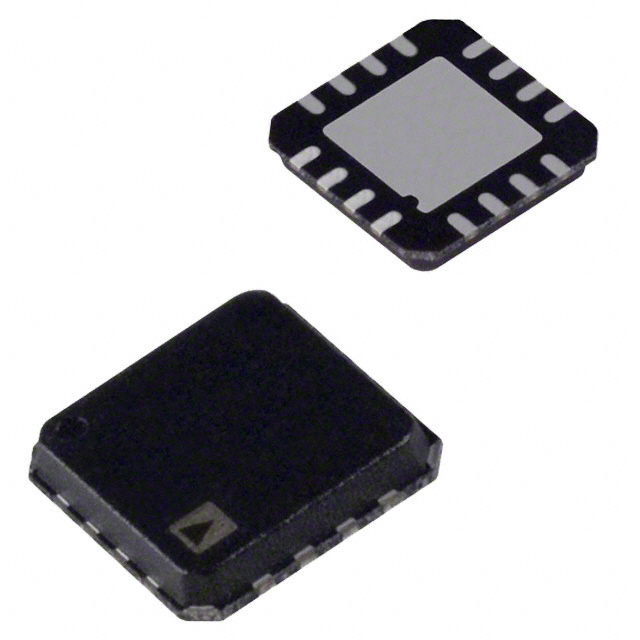

The ADP1752/ADP1753 are available in a 16-lead, 4 mm × 4 mm LFCSP, making them not only very compact solutions, but also providing excellent thermal performance for applications requiring up to 800mA of output current in a small, low profile footprint.

### Features and Benefits

.

Maximum output current: 0.8 A

.

Input voltage range: 1.6 V to 3.6 V

.

Low shutdown current: <2 μA

.

Very low dropout voltage: 70 mV @ 0.8 A load

.

Initial accuracy: ±1%

.

Accuracy over line, load, and temperature: ±2%

.

7 fixed output voltage options with soft start 0.75 V to 2.5 V ADP1752

.

Adjustable output voltage option with soft start 0.75 V to 3.0 V ADP1753

.

High PSRR

See data sheet for details

.

23 μV rms at 0.75 V output

.

Stable with small 4.7 μF ceramic output capacitor

.

Excellent load and line transient response
