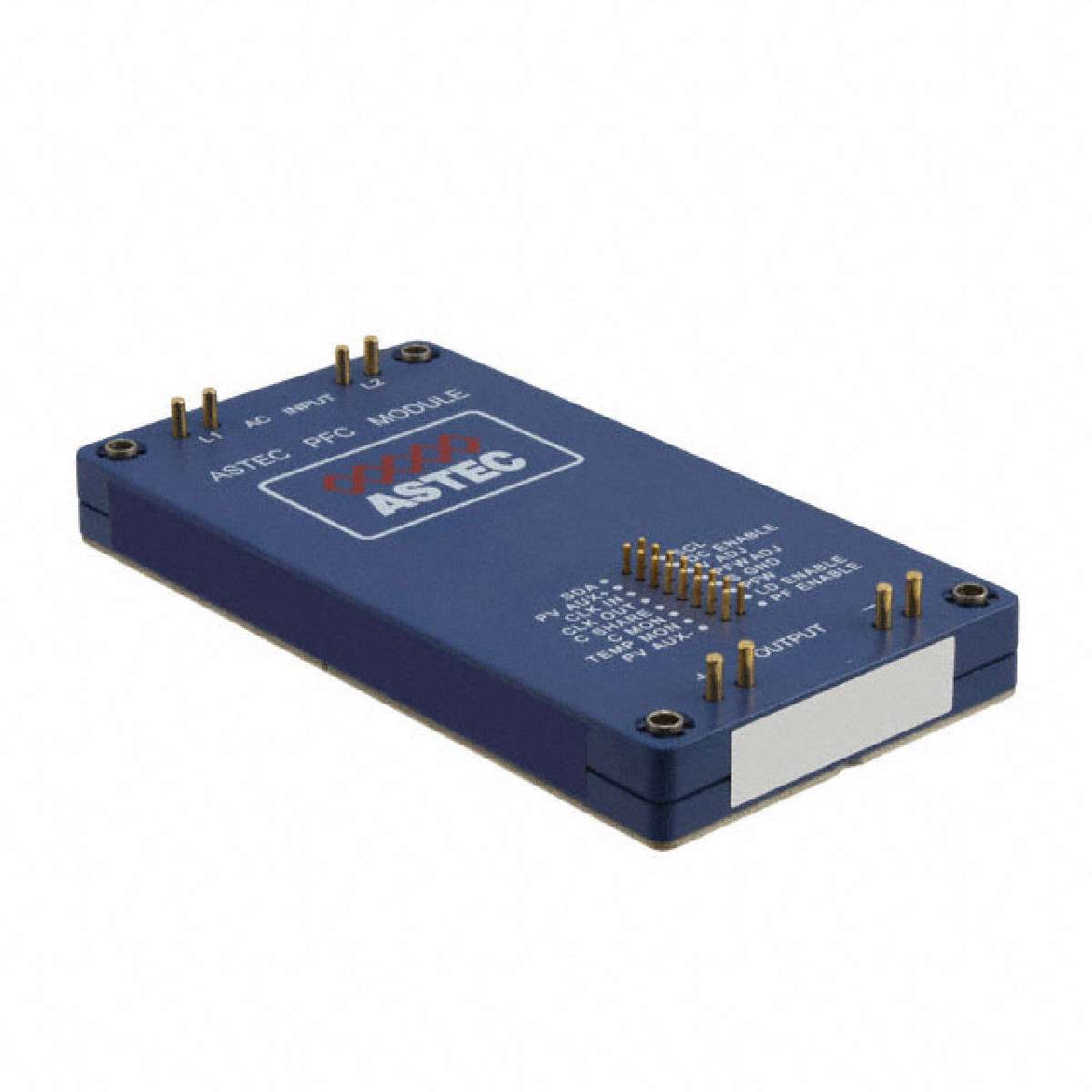

ARTESYN EMBEDDED TECHNOLOGIES AIF04ZPFC-02L 直流/直流转换器 隔离式板载, 全砖, 固定, 通孔安装, 1.6 kW, 380 V, 4.2 A
The is an isolated board-mount DC/DC Converter with direct drive output to opto-isolator LD enable and power fail warning. The 1600W low profile PC module is TTL compatible with PFC enable and it features 195 to 355VDC adjustable power fail warning, less than 10% total harmonic distortion and 76 to 100% voltage adjust.
- .
- Unity power factor
- .
- Universal input voltage and frequency range
- .
- Positive and negative enable function
- .
- Parallelable with accurate current sharing
- .
- Enable output to control DC-DC converter
- .
- EEPROM data storage via I²C Interface
- .
- External inrush current limited protection
- .
- Up to 95% high efficiency
- .
- 100°C Base plate operating temperature
Designed for parallel operation where the total input current > 16Arms, requires external rail rectifiers.
电源电压DC 264 V
额定功率 1600 W
输出接口数 1
输出电压 380 V
输出电流 4.2 A
输出功率 1600 W
输入电压DC Max 370 V
输入电压DC Min 120 v
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 4.2 A
输出功率Max 1.6 kW
工作温度Max 100 ℃
工作温度Min -20 ℃
输入电压 85VAC ~ 264VAC
安装方式 Through Hole
引脚数 24
封装 DIP-34
长度 116.8 mm
宽度 61 mm
高度 12.7 mm
封装 DIP-34
工作温度 -20℃ ~ 100℃
产品生命周期 Active
制造应用 ITE（商业）, 工业, 信号处理
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AIF04ZPFC-02L Artesyn Embedded Technologies 雅特生 | 当前型号 | 当前型号 |
AIF04ZPFC-01L 雅特生 | 完全替代 | AIF04ZPFC-02L和AIF04ZPFC-01L的区别 |
AIF04ZPFC-02 雅特生 | 功能相似 | AIF04ZPFC-02L和AIF04ZPFC-02的区别 |
