高精度,超低智商500毫安,公司的anyCAP低压差稳压器 High Accuracy, Ultralow IQ, 500 mA, anyCAP Low Dropout Regulator
Product Details
The ADP3335 is a member of the ADP330x family of precision low dropout anyCAP voltage regulators. The ADP3335 operates with an input voltage range of +2.6 V to +12 V and delivers a continuous load current up to 500 mA. The ADP3335 stands out from the conventional LDOs with the lowest thermal resistance of any MSOP-8 package and an enhanced process that enables it to offer performance advantages beyond its competition. Its pat-ented design requires only a 1.0 µF output capacitor for stability. This device is insensitive to output capacitor Equivalent Series Resistance ESR, and is stable with any good quality capacitor, including ceramic MLCC types for space-restricted applications. The ADP3335 achieves exceptional accuracy of ±0.9% at room temperature and ±1.8% over temperature, line and load variations. The dropout voltage of the ADP3335 is only 200 mV typical at 500 mA. This device also includes a safety current limit, thermal overload protection and a shutdown feature. In shutdown mode, the ground current is reduced to less than 2 µA. The ADP3335 has ultralow quiescent current 60 µA typ in light load situations.
### Features and Benefits
输出接口数 1
输入电压DC 12.0V max
输出电压 5 V
输出电流 500 mA
供电电流 110µA ~ 10mA
跌落电压 0.2V @500mA
输入电压Max 12 V
输入电压Min 2.6 V
输出电压Min 5 V
输出电流Max 0.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.9 %
输入电压 ≤12 V
安装方式 Surface Mount
引脚数 8

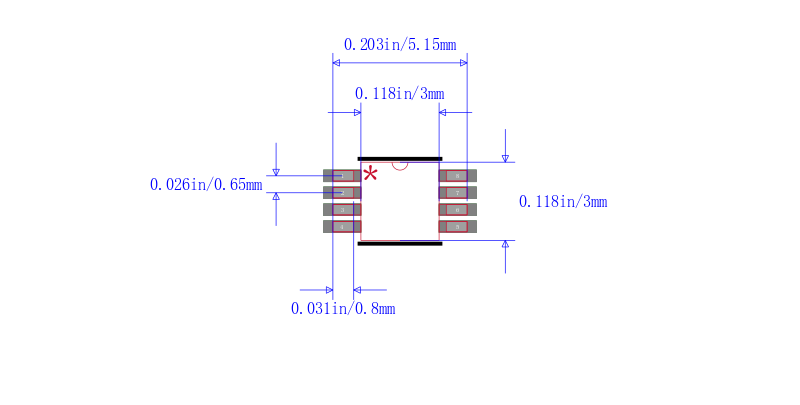

封装 MSOP-8
封装 MSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP3335ARMZ-5-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
ADP3335ARMZ-5-R7 亚德诺 | 完全替代 | ADP3335ARMZ-5-REEL和ADP3335ARMZ-5-R7的区别 |
ADP3335ARM-5-REEL7 亚德诺 | 完全替代 | ADP3335ARMZ-5-REEL和ADP3335ARM-5-REEL7的区别 |
ADP3335ARM-5-REEL 亚德诺 | 类似代替 | ADP3335ARMZ-5-REEL和ADP3335ARM-5-REEL的区别 |
