微处理器监控电路 Microprocessor Supervisory Circuit
Using this microprocessor supervisory circuit, developed by Analog Devices, easily have another processor take control in case the original fails. This device has a maximum power dissipation of 1000 mW. Its typical operating supply voltage is 5 V. Its maximum power dissipation is 1000 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature range of -40 °C to 85 °C. It has a typical reset threshold voltage of 4.62|4.37 V, with a minimum of 4.5|4.25 V and a maximum of 4.74|4.49 V. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 5.50V max
供电电流 0.5 mA
耗散功率 1 W
阈值电压 Adjustable
复位电压Min 4.5V, 4.25V
复位电压Max 4.74V, 4.49V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 5 V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 8

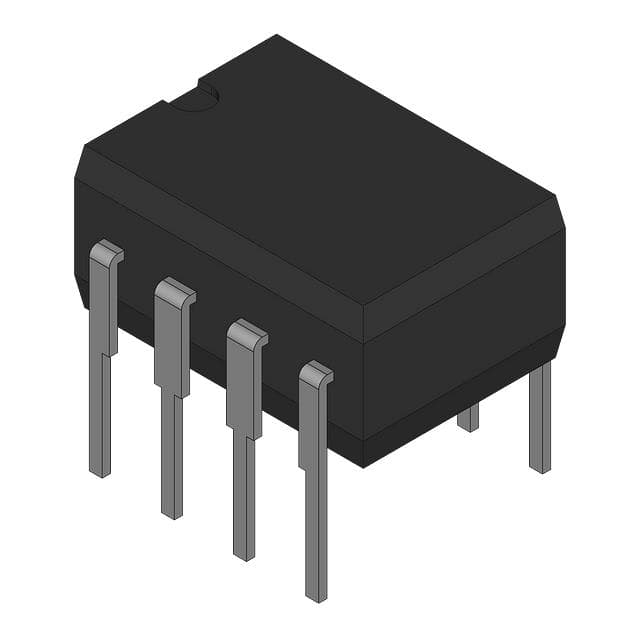

封装 PDIP-8
高度 3.3 mm
封装 PDIP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 No
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADM1232AN ADI 亚德诺 | 当前型号 | 当前型号 |
ADM1232ANZ 亚德诺 | 功能相似 | ADM1232AN和ADM1232ANZ的区别 |
MAX1232EPA 美信 | 功能相似 | ADM1232AN和MAX1232EPA的区别 |
