ADP2120ACPZ-1.5-R7

2 A / 1.25 A， 1.2 MHz同步整流，降压型的DC- DC稳压器 2 A/1.25 A, 1.2 MHz, Synchronous, Step-Down DC-to-DC Regulators

Product Details

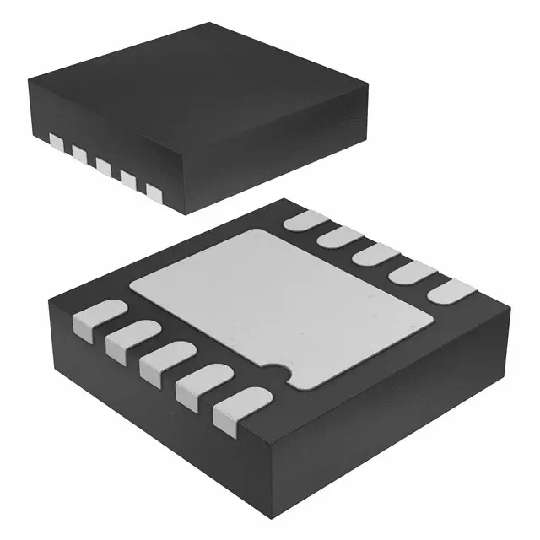

The ADP2119/ADP2120 are low quiescent current, synchronous, step-down DC-to -DC regulators in a compact 3mm x3mm LFCSP_WD package. Both Devices use current mode, constant frequency pulse-width modulation PWM control scheme for excellent stability and transient response. Under light load condition, they can be configured to operate in pulse frequency modulation PFM mode that reduces switching frequency to save power.

The ADP2119/ADP2120 can support input voltages from 2.3V to 5.5V. The output voltage can be adjusted from 0.6V to input voltage VIN for the adjustable version, while the fixed output version is available in preset output voltage options of 3.3V, 2.5V, 1.8V, 1.5V ,1.2V and 1.0V. The ADP2119/ADP2120 require minimal external parts and provide a high efficiency solution with their integrated power switches, synchronous rectifier, and internal compensation. Each IC draws less than 3 μA current from the input source when it is disabled. Other key features include under voltage lockoutUVLO, integrated soft start to limit inrush current at startup, overvoltage protection OVP, over current protection OCP and thermal shutdown TSD.

**Applications**

.

Point of load conversion

.

Communications and networking equipments

.

Industrial and instrumentation

.

Consumer electronics

.

Medical appliances

### Features and Benefits

.

Continuous output current: 1.25A

.

145 mΩ and 70 mΩ integrated FET

.

Input voltage range from 2.3V to 5.5 V

.

Output voltage from 0.6V to VIN

.

±1.5% output accuracy

.

1.2MHz fixed switching frequency

.

Synchronizable between 1.0MHz and 2MHz

.

Selectable PWM or PFM mode operation

.

Current mode architecture

.

Precision threshold enable input

.

Power-good flag

.

Voltage tracking input

.

Integrated soft start

.

Internal compensation

.

Start up with precharged output

.

See data sheet for additional features
