ADP1614ACPZ-R7

Conv DC-DC 2.5V to 5.5V Step Up Single-Out 3V 4A 10Pin LFCSP EP T/R

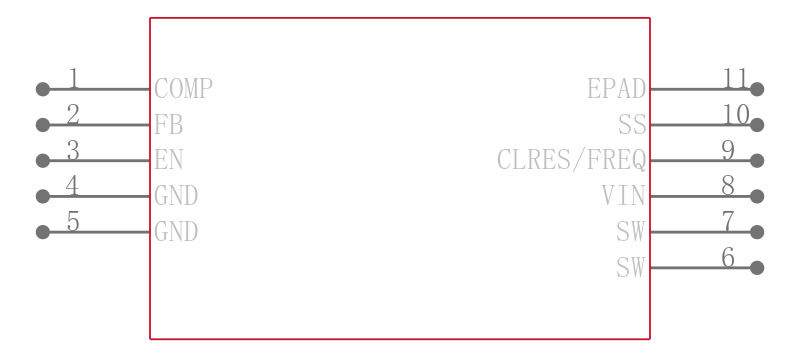

Product Details

The ADP1614 is a step-up, dc-to-dc switching converter with an integrated power switch capable of providing an output voltage as high as 20V. The ADP1614 is available with a pin-adjustable current limit that is set via an external resistor with the boost switching frequency fixed to either 650kHz or 1.3MHz. Alternatively, the ADP1614 is also available with fixed 3A current limit and a pin-selectable frequency. With a package height of 0.8mm, the ADP1614 is optimal for space constrained applications, such as portable devices or thin film transistor TFT liquid crystal displays LCDs.

The ADP1614 operates in current-mode pulse-width modulation PWM with up to 94% efficiency. Adjustable soft start prevents inrush currents when the part is enabled. The PWM current-mode architecture allows excellent transient response, easy noise filtering, and the use of small, cost-saving external inductors and capacitors.Other key features include undervoltage lockout UVLO, thermal shutdown TSD, and logic controlled enable.

The ADP1614 is available in Pb-free, 10-lead lead frame chip scale package LFCSP.

**Applications**

.

TFT LCD bias supplies

.

Portable applications

.

Industrial/instrumentation equipment

### Features and Benefits

.

Adjustable and fixed current-limit options:

Adjustable up to 4A

Fixed 3 A

.

2.5 V to 5.5V input voltage range

.

650kHz or 1.3MHz fixed frequency option

.

Adjustable output voltage, up to 20V

.

Adjustable soft start

.

Undervoltage lockout

.

Thermal shutdown

.

3mm×3mm, 10-lead LFCSP

.

Supported by simPower design too
