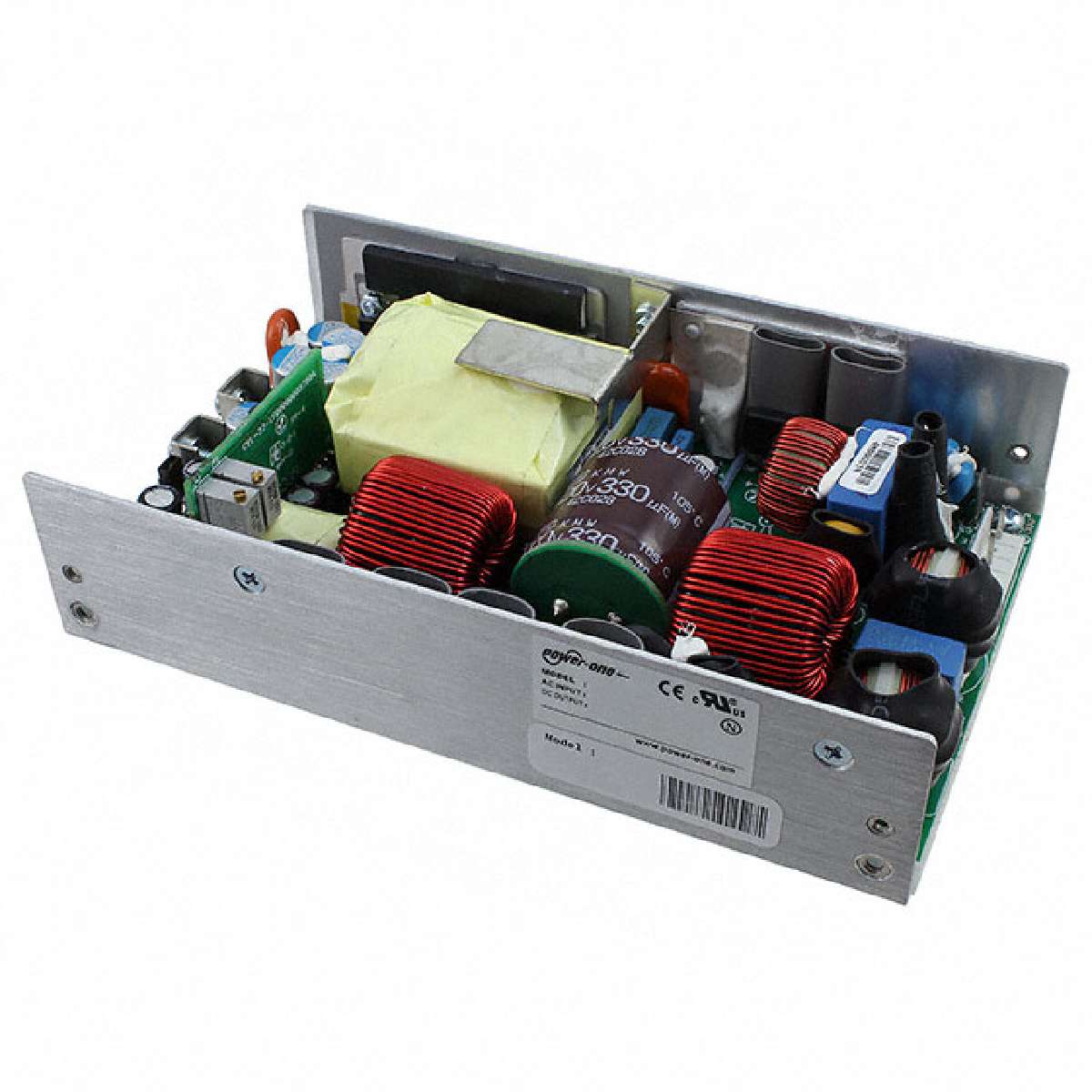

AC-DC Power Supply Single-OUT 24V 12.3A 450W 17Pin
开放框架 AC DC 转换器 1 输出 24V - - - 12.3A 90 ~ 264 VAC 输入
得捷:
AC/DC CONVERTER 24V 295/450W
欧时:
Power Supply Switch Mode 24V 12.3A
贸泽:
Switching Power Supplies 450W 24 Vdc output
艾睿:
Ensure your electronic devices operate by using this ABC450-1T24G AC to DC power supply from Bel Power Solutions. It has a voltage of 24 V and maximum output power of 450 W. This part&s;s single output can handle a current up to 12.3 A. This part has a minimum operating temperature of -20 °C and a maximum of 70 °C.
Allied Electronics:
Power Supply; AC-DC; 24V@18.75A; 90-264V In; Open Frame; Panel Mount; PFC; ABC Series
Verical:
AC/DC Power Supply Single-OUT 24V 12.3A 450W 17-Pin
输出接口数 1
输出电压 24 V
输出电流 12.3 A
输出功率 450 W
隔离电压 4.242 kV
输入电压DC Max 390 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 90 V
输出电流Max 12.3 A
输入电流Min 4.5 A
工作温度Max 70 ℃
工作温度Min -20 ℃
输入电压 90VAC ~ 264VAC
安装方式 Chassis
引脚数 17
长度 165 mm
宽度 101.6 mm
高度 41 mm
工作温度 -20℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
