ADP5075ACBZ-R7

ANALOG DEVICES  ADP5075ACBZ-R7  直流-直流开关反相稳压器, 可调, 2.85V-15V输入, -39V-2.85V/800mA输出, 2.4 MHz, WLCSP-12

Product Details

The ADP5075 is a high performance dc-to-dc inverting regulator used to generate negative supply rails.

The input voltage range of 2.85 V to 15 V supports a wide variety of applications. The integrated main switch enables the generation of an adjustable negative output voltage down to 39 V below the input voltage.

The ADP5075 operates at a pin selected 1.2 MHz/2.4 MHz switching frequency. The ADP5075 can synchronize with an external oscillator from 1.0 MHz to 2.6 MHz to ease noise filtering in sensitive applications. The regulator implements programmable slew rate control circuitry for the MOSFET driver stage to reduce electromagnetic interference EMI.

The ADP5075 includes a fixed internal or resistor programmable soft start timer to prevent inrush current at power-up. During shutdown, the regulator completely disconnects the load from the input supply to provide a true shutdown.

Other key safety features in the ADP5075 include overcurrent protection OCP, overvoltage protection OVP, thermal shutdown TSD, and input undervoltage lockout UVLO.

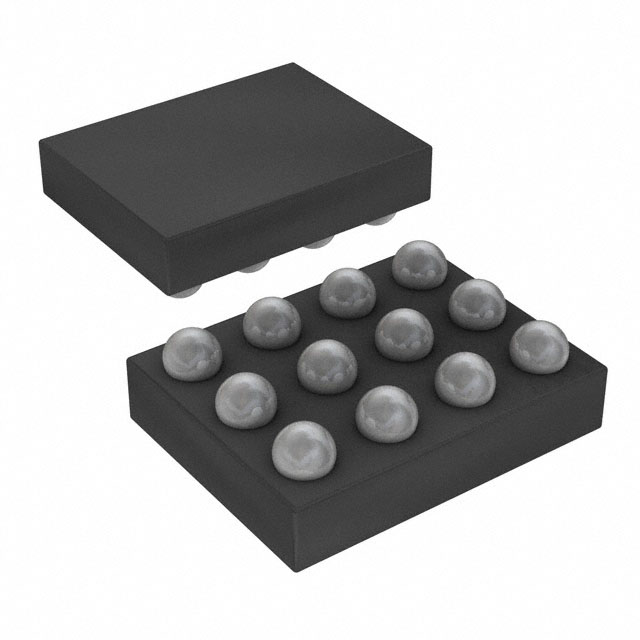

The ADP5075 is available in a 12-ball WLCSP and is rated for a −40°C to +125°C junction temperature range.

Applications

.

Bipolar amplifiers, analog-to-digital converters ADCs,  digital-to-analog converters DACs, and multiplexers

.

Charge coupled device CCD bias supplies

.

Optical module supplies

.

Radio Frequency RF power amplifier PA bias

### Features and Benefits

.

Wide input voltage range:

2.85 V to 15 V

.

Adjustable negative output to VIN − 39 V

.

Integrated 800 mA main switch

.

1.2 MHz/2.4 MHz switching frequency with optional external frequency synchronization from 1.0 MHz to 2.6 MHz

.

Resistor programmable soft start timer

.

Slew rate control for lower system noise

.

Precision enable control

.

UVLO, OCP, OVP, and TSD protection

.

1.61 mm × 2.18 mm, 12-ball WLCSP

.

−40°C to +125°C junction temperature

.

Supported by the simPower tool set
