50毫安,高电压,微功耗线性稳压器 50 mA, High Voltage, Micropower Linear Regulator
PMIC - 稳压器 - 线性 正 固定 1 输出 50mA 8-MSOP
得捷:
IC REG LINEAR 5V 50MA 8MSOP
立创商城:
ADP1720TRMZ5-EP
艾睿:
Make a theoretical system actual by providing stable voltages with this LDO ADP1720TRMZ5-EP linear regulator from Analog Devices. Its typical dropout voltage at current is 0.055@10mA|0.275@50mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.05 A. Use this part at voltages between 4 V and 28 V. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 0.001%/mATyp and line regulation of 0.02%/V a constant current can be produced at the output of your circuit. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has an operating temperature range of -55 °C to 125 °C. The maximum dropout voltage is 0.105@10mA|0.48@50mA V. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 5V 0.05A 8-Pin MSOP Tube
DeviceMart:
IC REG LDO 5V 50MA 8MSOP
输出接口数 1
输出电压 5 V
输出电流 50 mA
供电电流 2.12 mA
跌落电压 0.055V @10mA,0.275V @50mA
输入电压Max 28 V
输入电压Min 4 V
输出电压Min 5 V
输出电流Max 0.05 A
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±1 %
输入电压 ≤28 V
安装方式 Surface Mount

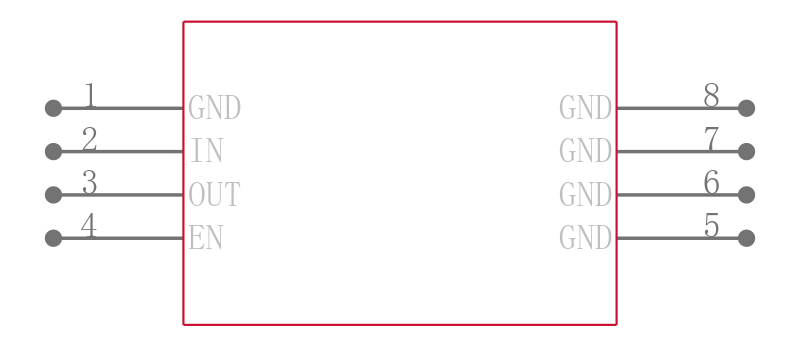

引脚数 8

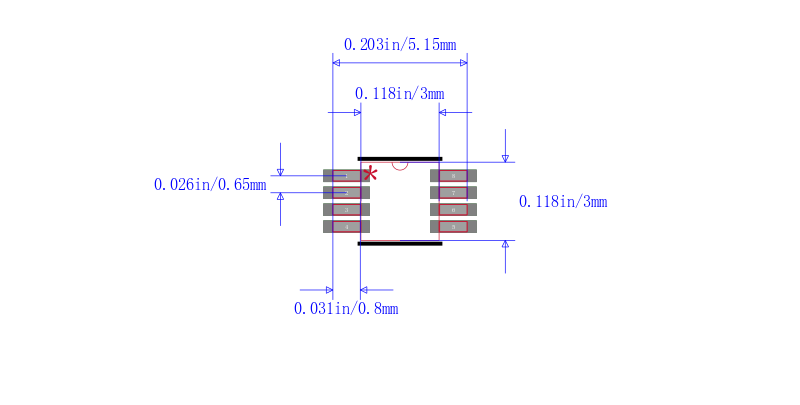

封装 MSOP-8
封装 MSOP-8
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 Heating Ventilation and Air Conditioning, White Goods and Vending, Building Technology, Building Control and Automation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP1720TRMZ5-EP ADI 亚德诺 | 当前型号 | 当前型号 |
ADP1720ARMZ-5-R7 亚德诺 | 类似代替 | ADP1720TRMZ5-EP和ADP1720ARMZ-5-R7的区别 |
TPS79850QDGNRQ1 德州仪器 | 功能相似 | ADP1720TRMZ5-EP和TPS79850QDGNRQ1的区别 |
TPS77450DGK 德州仪器 | 功能相似 | ADP1720TRMZ5-EP和TPS77450DGK的区别 |
