OMRON ELECTRONIC COMPONENTS A6T-0101 DIP / SIP Switch, Flush Slide, 10Circuits, SPST, Through Hole, A6T Series, DIP Unsealed, 24VDC
DIP SPST 位置 通孔 滑动式（标准） 触动器 25mA 24VDC
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
艾睿:
Switch DIP OFF ON SPST 10 Flush Slide 0.025A 24VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube
安富利:
Switch DIP ON OFF SPST 10 Flush Slide 0.025A 24VDC PC Pins 1000Cycle 2.54mm Thru-Hole Stick
Chip1Stop:
Switch DIP ON OFF SPST 10 Flush Slide 0.025A 24VDC PC Pins 1000Cycles 2.54mm Thru-Hole Stick
Newark:
# OMRON ELECTRONIC COMPONENTS A6T-0101 DIP / SIP Switch, Flush Slide, 10 Circuits, SPST, Through Hole, A6T Series, DIP Unsealed, 24 VDC
Electro Sonic:
Switch DIP OFF ON SPST 10 Flush Slide 0.025A 24VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube
接触器类型 Standard
额定电流 25 mA
方向 Vertical
触点类型 SPST
电路数 10
针脚数 10
额定电流Max 0.025A @24VDC
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 200 mΩ
安装方式 Through Hole
封装 DIP

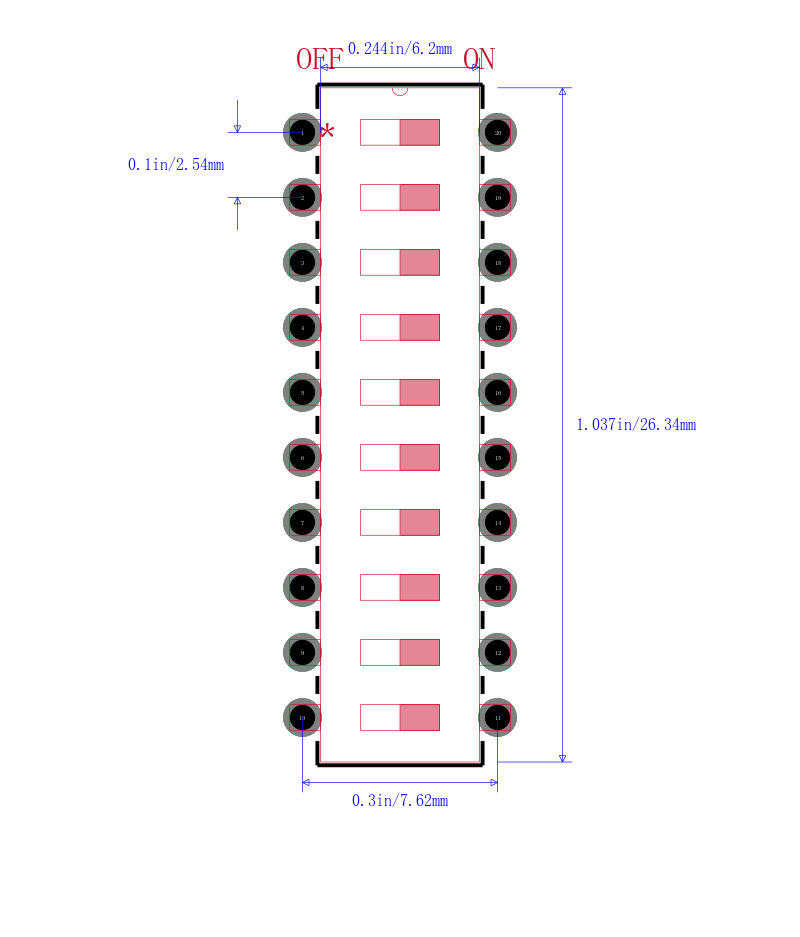

长度 26.34 mm
宽度 7.62 mm
高度 3.6 mm
封装 DIP
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
