Switch DIP ON OFF SPST 2 Piano 0.025A 24VDC PC Pins 1000Cycle 2.54mm Thru-Hole Tube
is manufactured by Elect and is categorized in the DIP Switches category. A6TR-2101 is described as SWITCH PIANO DIP SPST 25MA 24V. Perfect Parts is a supplier of Switches and other Electromechanicals.
得捷:
SWITCH PIANO DIP SPST 25MA 24V
贸泽:
DIP Switches / SIP Switches TH Low Profile DIP Switch
艾睿:
Switch DIP OFF ON SPST 2 Piano 0.025A 24VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube
Chip1Stop:
Switch DIP ON OFF SPST 2 Piano 0.025A 24VDC PC Pins 1000Cycle 2.54mm Thru-Hole Tube
Electro Sonic:
Switch DIP OFF ON SPST 2 Piano 0.025A 24VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube
额定电压DC 24 V
额定电流 25 mA
触点类型 SPST
针脚数 2
额定电流Max 0.025A @24VDC
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 200 mΩ
安装方式 Through Hole

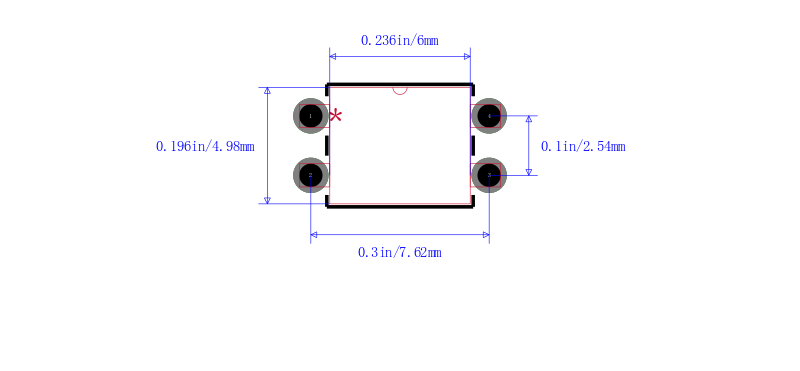

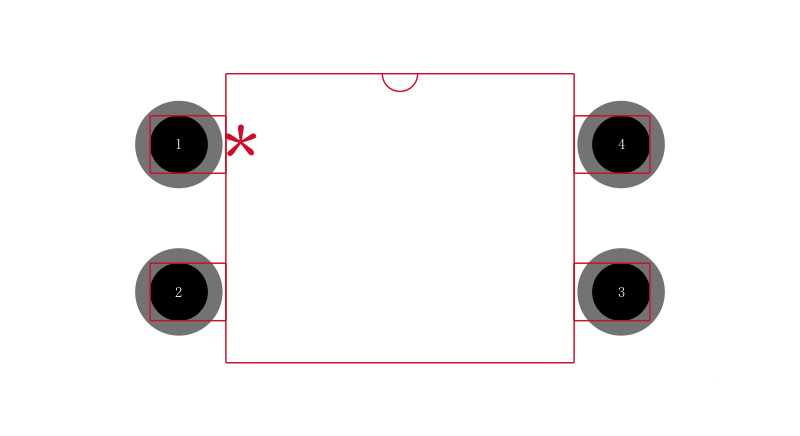

封装 DIP
长度 4.98 mm
宽度 7.92 mm
高度 5 mm
封装 DIP
触点材质 Gold
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
A6TR-2101 Omron 欧姆龙 | 当前型号 | 当前型号 |
A6TR-2104 欧姆龙 | 完全替代 | A6TR-2101和A6TR-2104的区别 |
PI02090 Apem Components | 类似代替 | A6TR-2101和PI02090的区别 |
1571999-4 泰科 | 功能相似 | A6TR-2101和1571999-4的区别 |
