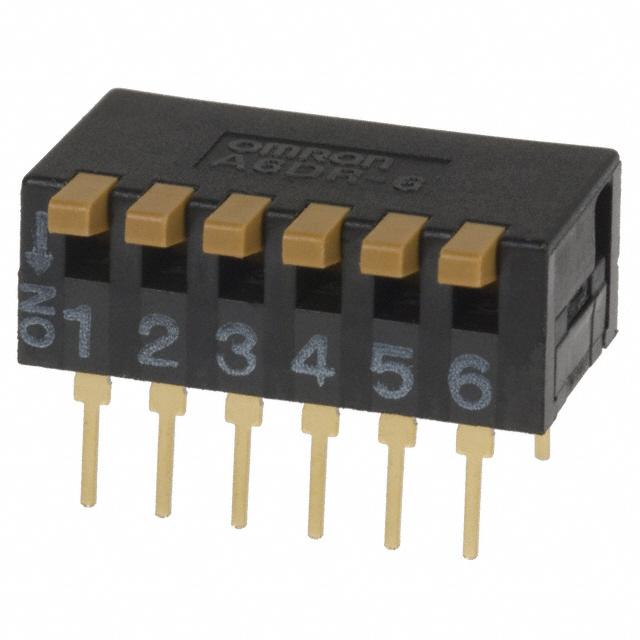

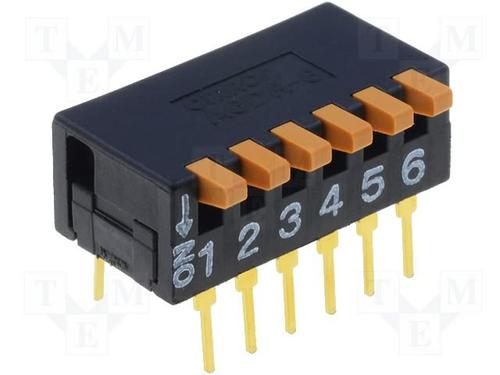

A6DR-6100

OMRON ELECTRONIC COMPONENTS  A6DR-6100  DIP / SIP开关, A6D系列, SPST, 通孔安装, 6 电路, DIP密封, 24 VDC

防尘滑动

防尘结构高性能 DIP 开关系列

印刷电路板通孔安装

符合 RoHs

镀金双触点，自清洗

平稳，转换作用可靠

触点电阻：100mΩ max

绝缘电阻：100MΩ 最小 @ 250V 直流

机械寿命：5 x 103

### 注

除非另有说明，否则这些开关不适于浸泡清洗。

得捷:
SWITCH PIANO DIP SPST 30MA 30V

欧时:
开关，DIL，滑动，侧向执行器�

立创商城:
A6DR-6100

e络盟:
DIP / SIP开关, 6 电路, 钢琴键, 通孔安装, SPST, 24 VDC, 25 mA

艾睿:
Switch DIP OFF ON SPST 6 Piano 0.03A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP ON OFF SPST 6 Piano 0.1A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Box

TME:
Switch: DIP-SWITCH; Poles number:6; ON-OFF; 0.03A/30VDC; -20÷70°C

Verical:
Switch DIP OFF ON SPST 6 Piano 0.03A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Tube

Newark:
# OMRON ELECTRONIC COMPONENTS  A6DR-6100  DIP Switch, A6D Series, SPST, DIP Sealed, Through Hole, 25 mA, 24 VDC

MASTER:
Switch DIP OFF ON SPST 6 Piano 0.03A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP OFF ON SPST 6 Piano 0.03A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Tube
