监控电路 5V CMOS I.C.
Your circuit won"t fail if its main processor goes out thanks to this microprocessor supervisory circuit from Analog Devices. This device has a maximum power dissipation of 600 mW. Its maximum power dissipation is 600 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This part has an operating temperature range of -40 °C to 85 °C. This device has a minimum operating supply voltage of 4.5 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4.4 V, with a minimum of 4.25 V and a maximum of 4.48 V.
电源电压DC 5.50V max
供电电流 100 µA
耗散功率 600 mW
阈值电压 4.4 V
复位电压Min 4.25 V
复位电压Max 4.48 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 600 mW
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 16

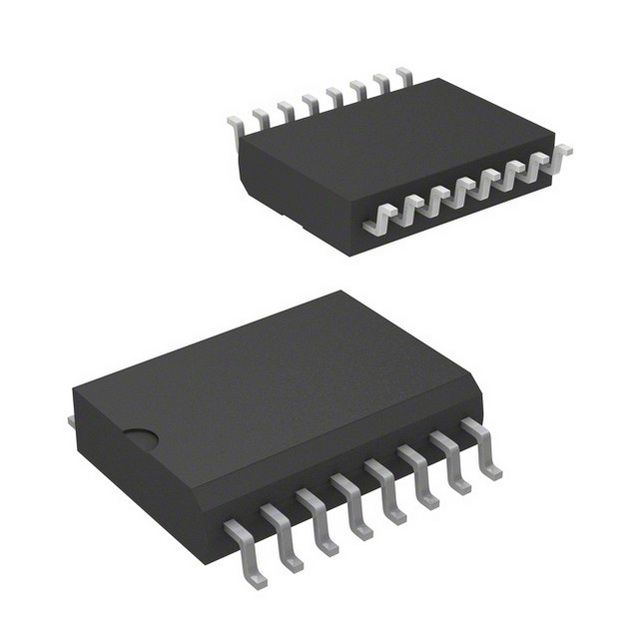

封装 SOIC-16
高度 2.35 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM693ARZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
ADM693AR-REEL 亚德诺 | 完全替代 | ADM693ARZ-REEL和ADM693AR-REEL的区别 |
ADM693ARZ 亚德诺 | 类似代替 | ADM693ARZ-REEL和ADM693ARZ的区别 |
ADM693AR 亚德诺 | 类似代替 | ADM693ARZ-REEL和ADM693AR的区别 |
