1 A,低压差, CMOS线性稳压器 1 A, Low Dropout, CMOS Linear Regulator
PMIC - 稳压器 - 线性 输出 1A 8-SOIC-EP
得捷:
IC REG LINEAR 1.8V 1A 8SOIC
立创商城:
ADP1707ARDZ-1.8-R7
艾睿:
Make a theoretical system actual by providing stable voltages with this LDO ADP1707ARDZ-1.8-R7 linear regulator from Analog Devices. It has an overall accuracy of ±1.5 %. Its typical dropout voltage at current is 0.345@1A V. This voltage regulation device&s;s single output can produce a current up to 1 A. With a small input voltage of 2.5 V and a max of 5.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.001%/mA and line regulation of 0.1%/V. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 1A 8-SOIC-EP
输出接口数 1
输出电压 1.8 V
输出电流 1 A
供电电流 1.55 mA
跌落电压 0.345V @1A
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电压Min 1.8 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 2.5V ~ 5.5V

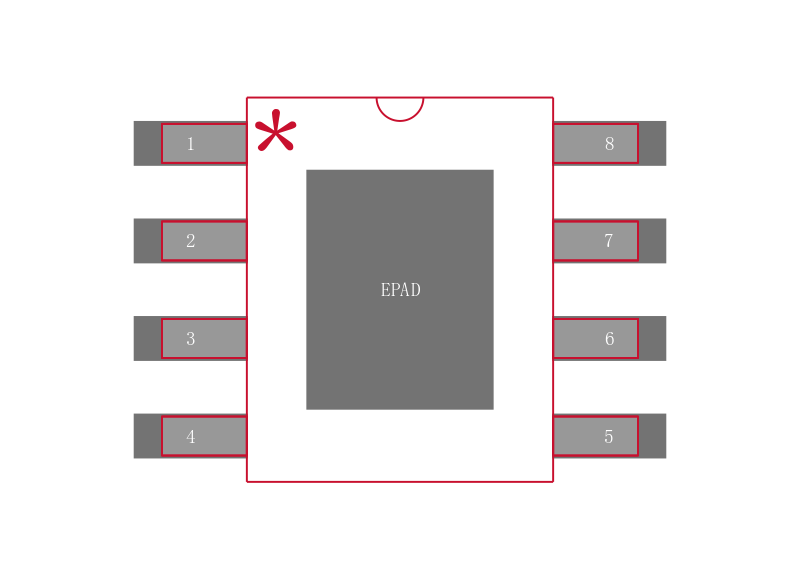

安装方式 Surface Mount

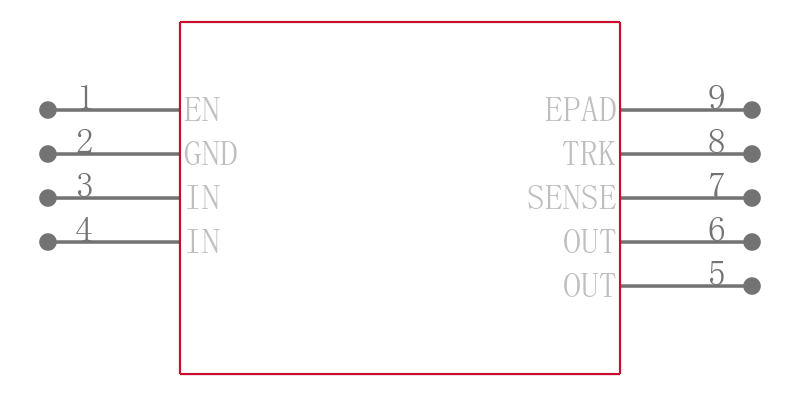

引脚数 8

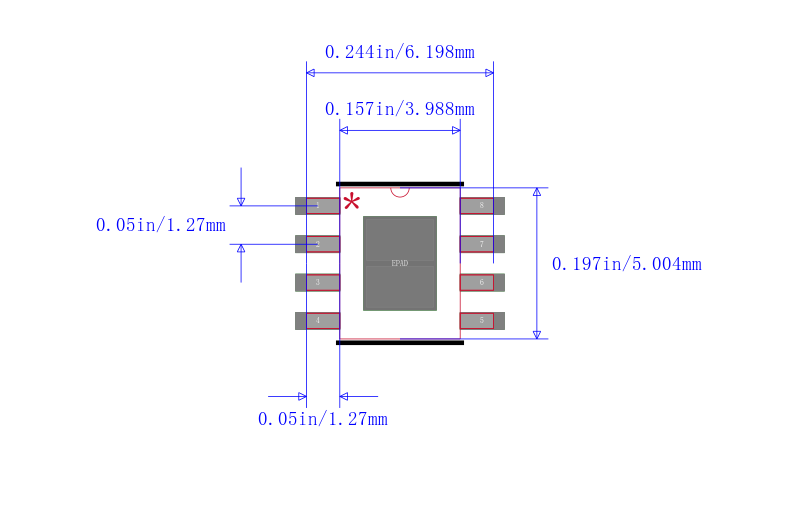

封装 SOIC-8
长度 4.9 mm
宽度 3.9 mm
高度 1.65 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP1707ARDZ-1.8-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP1706ARDZ-1.8-R7 亚德诺 | 类似代替 | ADP1707ARDZ-1.8-R7和ADP1706ARDZ-1.8-R7的区别 |
TPS76518D 德州仪器 | 功能相似 | ADP1707ARDZ-1.8-R7和TPS76518D的区别 |
TPS76518DG4 德州仪器 | 功能相似 | ADP1707ARDZ-1.8-R7和TPS76518DG4的区别 |
