ADR390BUJZ-R2

精密，低漂移2.048 V / 2.5 V / 4.096 V / 5.0 V SOT- 23参考与关机 Precision Low Drift 2.048 V/2.5 V/4.096 V/ 5.0 V SOT-23 Reference with Shutdown

**GENERAL DESCRIPTION**

The ADR390, ADR391, ADR392, and ADR395 are precision 2.048 V, 2.5 V, 4.096 V, and 5 V band gap voltage references, respectively, featuring low power and high precision in a tiny footprint. Using ’s patented temperature drift curvature correction techniques, the ADR39x references achieve a low 9 ppm/°C of temperature drift in the TSOT package.

**FEATURES**

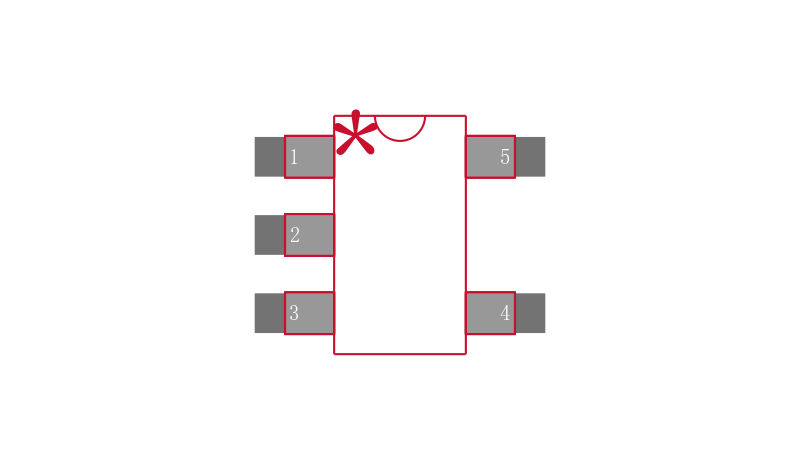

**Compact TSOT-23-5 packages**

**Low temperature coefficient**

**   B grade: 9 ppm/°C**

**   A grade: 25 ppm/°C**

**Initial accuracy**

**   B grade: ±4 mV maximum**

**   A grade: ±6 mV maximum**

**Ultralow output noise: 5 µV p-p 0.1 Hz to 10 Hz**

**Low dropout: 300 mV**

**Low supply current**

**   3 µA maximum in shutdown**

**   120 µA maximum in operation**

**No external capacitor required**

**Output current: 5 mA**

**Wide temperature range**

**    −40°C to + 125°C**

**APPLICATIONS**

**Battery-powered instrumentation**

**Portable medical instrumentation**

**Data acquisition systems**

**Industrial process controls**

**Automotive**
