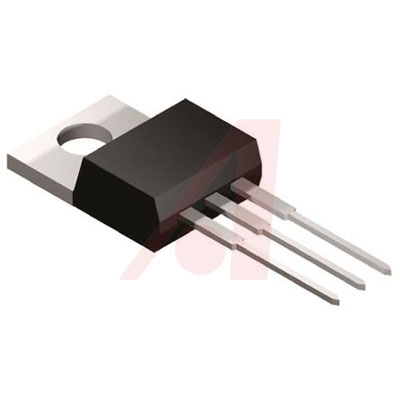

Power Switch Hi Side 1Out 18A 0.015Ω Automotive 5Pin5+Tab TO-220 Tube
Description
The SR is a five terminal Intelligent Power Switch IPS for use in a high side configuration. It features short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback. The output current is limited to the Ilim value. The current limitation is activated until the thermal protection acts. The over-temperature protection turns off the device if the junction temperature exceeds the Tshutdown value. It will automatically restart after the junction has cooled 7°C below the Tshutdown value. The reverse battery protection turns On the MOSFET. A diagnostic pin provides different voltage levels for each fault condition. The double level shifter circuitry will allow large offsets between the logic and load ground.
Features
● Over temperature shutdown with auto-restart
● Short circuit protection current limit
● Reverse battery protection turns On the MOSFET
● Full diagnostic capability short circuit to battery
● Active clamp
● Open load detection in On and Off state
● Ground loss protection
● Logic ground isolated from power ground
● ESD protection
● Lead Free and RoHS compliant
