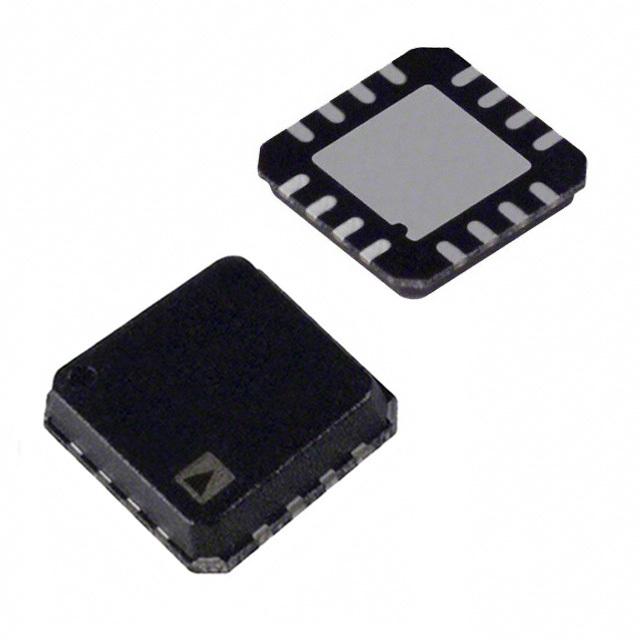

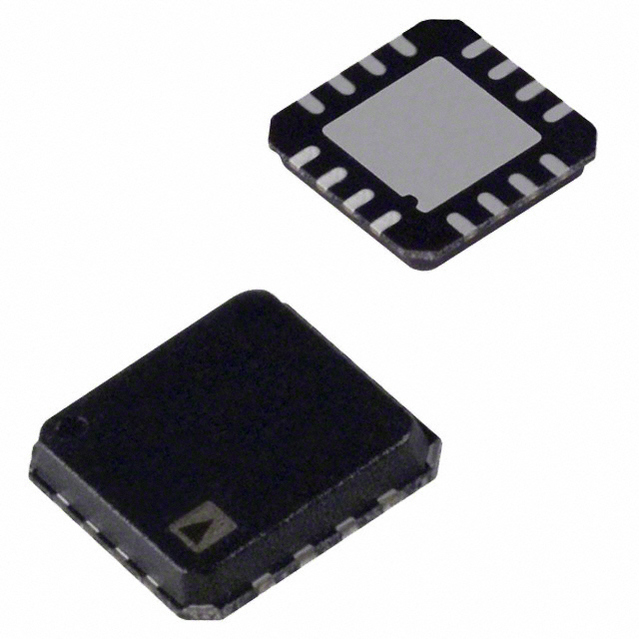

ANALOG DEVICES ADP2105ACPZ-R7 直流-直流开关降压逐步递减稳压器, 可调, 2.7V-5.5V输入, 800mV-5.5V输出, 1A输出, LFCSP-16
Adjust the voltage level of your devices with this step down DC to DC converter from Analog Devices. This converter"s single output can produce a current up to 1 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 5.5 V. With an adjustable output that has a voltage of 0.8 to 5.5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.4%/ATyp and line regulation of 0.33%/V. This converter is 97 % efficient. Its switching regulator has a frequency of 1200Typ kHz. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 0.8V ~ 5.5V
输出电流 1 A
供电电流 30.0 µA

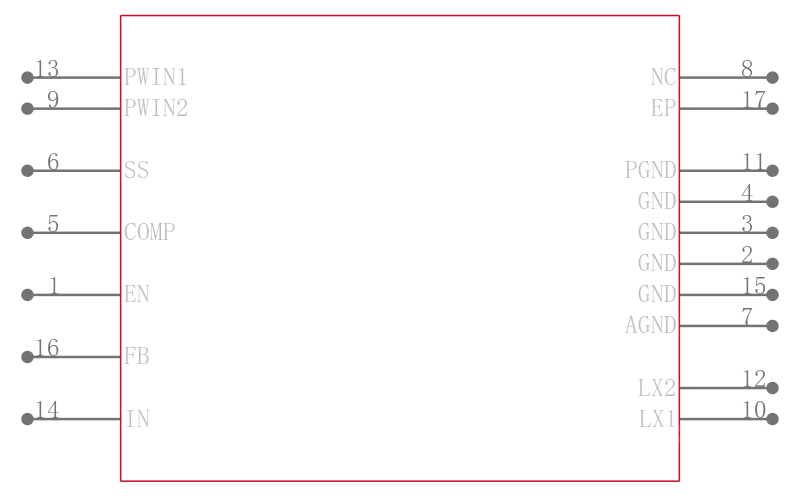

针脚数 16
开关频率 1.2 MHz
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电压Max 5.5 V
输出电压Min 800 mV
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.7 V
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 16
封装 LFCSP-16
长度 4.00 mm
宽度 4 mm
高度 0.83 mm
封装 LFCSP-16
工作温度 -40℃ ~ 125℃
产品生命周期 End of Life
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP2105ACPZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP2105ACPZ-1.2-R7 亚德诺 | 类似代替 | ADP2105ACPZ-R7和ADP2105ACPZ-1.2-R7的区别 |
ADP2105ACPZ-1.8-R7 亚德诺 | 类似代替 | ADP2105ACPZ-R7和ADP2105ACPZ-1.8-R7的区别 |
ADP2105ACPZ-3.3-R7 亚德诺 | 类似代替 | ADP2105ACPZ-R7和ADP2105ACPZ-3.3-R7的区别 |
