ADR434TRZ-EP概述

ANALOG DEVICES  ADR434TRZ-EP  电压基准, 超低噪, 系列 - 固定, ADR434-EP系列, 4.096V, NSOIC-8

参考电压,3.0V 至 4.5V,Analog Devices


得捷:
IC VREF SERIES 0.04% 8SOIC


立创商城:
串联 10mA


欧时:
Analog Devices ADR434TRZ-EP 精确 4.096V 电压参考, 4.0945 → 4.0975 V输出, 0.04%精确度, 10mA最大输出


贸泽:
参考电压 4.096V w/Crnt Sink & Srce Capability EP


艾睿:
Even in the event of large power supply variations, this ADR434TRZ-EP voltage reference power management device from Analog Devices can produce and maintain a precise DC voltage. It has an initial accuracy of 0.04%. Supply your circuit with sufficient power by implementing this, which does not exceed 20 V. With an output that has a voltage of 4.096 V, this is power management at its best. By operating at a load regulation of 15ppm/mA and line regulation of 20ppm/V you can provide a constant voltage at your output. This voltage reference circuit supports series topology. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage reference circuit has a minimum operating temperature of -55 °C and a maximum of 125 °C. It runs with a maximum temperature coefficient of 3ppm/°C.


安富利:
V-Ref Precision 4.096V 10mA 8-Pin SOIC N Tube


Chip1Stop:
V-Ref Precision 4.096V 10mA 8-Pin SOIC N Tube


Verical:
V-Ref Precision 4.096V 10mA 8-Pin SOIC N Tube


Newark:
# ANALOG DEVICES  ADR434TRZ-EP  Voltage Reference, Ultralow Noise, Series - Fixed, ADR434-EP Series, 4.096V, NSOIC-8


ADR434TRZ-EP中文资料参数规格
技术参数

容差 ±0.04 %

输出电压 4.096 V

输出电流 10 mA

供电电流 800 µA

通道数 1

针脚数 8

输入电压Max 20 V

输出电压Max 4.0975 V

输出电压Min 4.096 V

输出电流Max 10 mA

工作温度Max 125 ℃

工作温度Min -55 ℃

输入电压 6.1V ~ 18V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

长度 5 mm

宽度 4 mm

高度 1.5 mm

封装 SOIC-8

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±1 ppm/℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2016/06/20

海关信息

ECCN代码 EAR99

数据手册

ADR434TRZ-EP引脚图与封装图

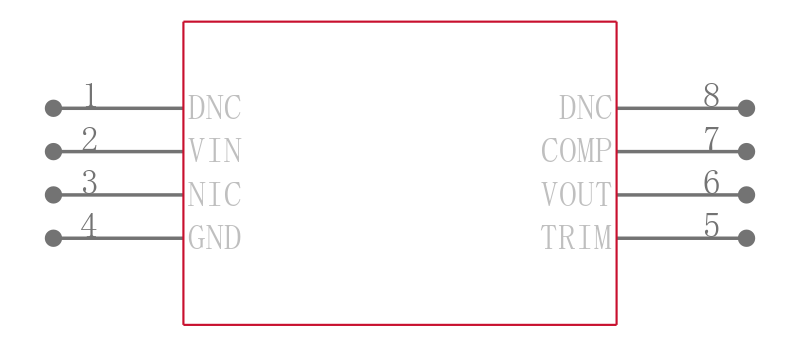

ADR434TRZ-EP引脚图
ADR434TRZ-EP封装图
ADR434TRZ-EP封装焊盘图
在线购买ADR434TRZ-EP
型号: ADR434TRZ-EP
制造商: ADI 亚德诺
描述:ANALOG DEVICES  ADR434TRZ-EP  电压基准, 超低噪, 系列 - 固定, ADR434-EP系列, 4.096V, NSOIC-8
替代型号ADR434TRZ-EP
型号/品牌 代替类型 替代型号对比

ADR434TRZ-EP

ADI 亚德诺

当前型号

当前型号

ADR434TRZ-EP-R7

亚德诺

类似代替

ADR434TRZ-EP和ADR434TRZ-EP-R7的区别

ADR434BR

亚德诺

功能相似

ADR434TRZ-EP和ADR434BR的区别

ADR434BR-REEL7

亚德诺

功能相似

ADR434TRZ-EP和ADR434BR-REEL7的区别
