AIUR-08-330K

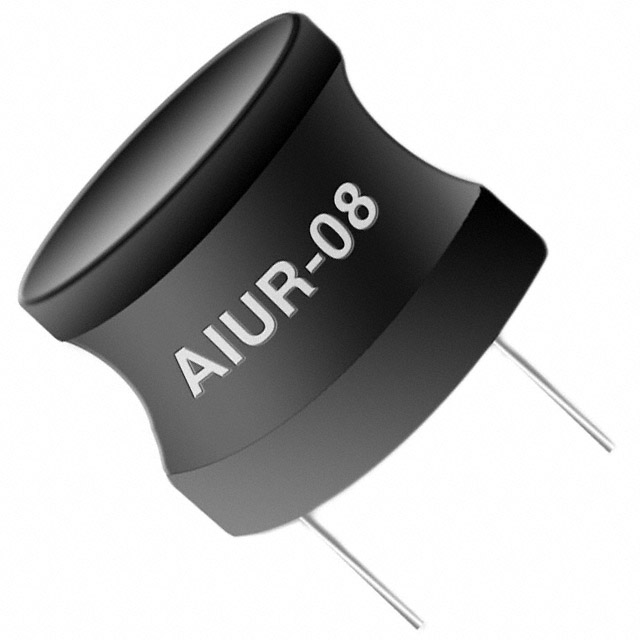

AIUR-08-330K图片1
AIUR-08-330K图片2
AIUR-08-330K图片3
AIUR-08-330K概述

Ind Power Wirewound 33uH 10% 2.52kHz Ferrite 2.9A RDL

33µH Unshielded Wirewound Inductor 2.9A 55mOhm Max Radial, Vertical Cylinder


立创商城:
33uH ±10% 2.9A 55mΩ


得捷:
FIXED IND 33UH 2.9A 55 MOHM TH


艾睿:
Inductor Power Unshielded Drum Core 33uH 10% 2.52MHz Ferrite 2.9A 0.055Ohm DCR Pin Bulk


Chip1Stop:
Ind Power Wirewound 33uH 10% 2.52KHz Ferrite 2.9A RDL


AIUR-08-330K中文资料参数规格
技术参数

额定电流 2.9 A

容差 ±10 %

电感 33 µH

测试频率 2.52 MHz

电阻DC) ≤55 mΩ

封装参数

安装方式 Through Hole

封装 Radial

外形尺寸

高度 10 mm

封装 Radial

物理参数

工作温度 -25℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买AIUR-08-330K
型号: AIUR-08-330K
制造商: Abracon
描述:Ind Power Wirewound 33uH 10% 2.52kHz Ferrite 2.9A RDL
