AIUR-16-4R7K

AIUR-16-4R7K图片1

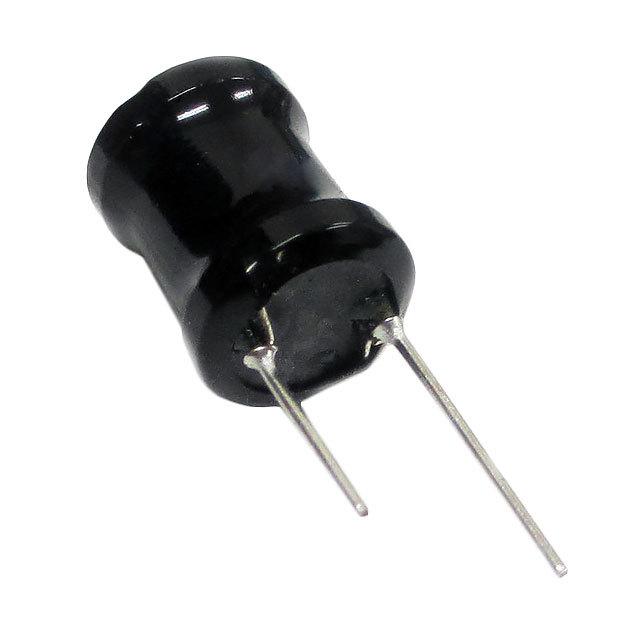

AIUR-16-4R7K图片2
AIUR-16-4R7K概述

Inductor Power Unshielded Wirewound 4.7uH 10% 10kHz Ferrite 1.3A 22mOhm DCR RDL Box

4.7µH Unshielded Wirewound Inductor 1.3A 22mOhm Max Radial, Vertical Cylinder


立创商城:
4.7uH ±10% 1.3A 22mΩ


得捷:
FIXED IND 4.7UH 1.3A 22 MOHM TH


艾睿:
Inductor Power Unshielded Drum Core 4.7uH 10% 10KHz Ferrite 1.3A 0.022Ohm DCR RDL Box


安富利:
UNSHIELDED DRUM CORE INDUCTOR, 4.7UH, 10%, 0.022OHM, 2.5A, 1


Verical:
Inductor Power Unshielded Drum Core 4.7uH 10% 10KHz Ferrite 1.3A 0.022Ohm DCR RDL Box


AIUR-16-4R7K中文资料参数规格
技术参数

额定电流 1.3 A

容差 ±10 %

电感 4.7 µH

测试频率 10 kHz

电阻DC) ≤22 mΩ

工作温度Max 85 ℃

工作温度Min -25 ℃

电阻DC Max 0.022 Ω

封装参数

安装方式 Through Hole

引脚数 2

封装 Radial

外形尺寸

高度 9.5 mm

封装 Radial

物理参数

工作温度 -25℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

海关信息

ECCN代码 EAR99

数据手册

AIUR-16-4R7K引脚图与封装图
AIUR-16-4R7K引脚图
AIUR-16-4R7K封装图
AIUR-16-4R7K封装焊盘图
在线购买AIUR-16-4R7K
型号: AIUR-16-4R7K
制造商: Abracon
描述:Inductor Power Unshielded Wirewound 4.7uH 10% 10kHz Ferrite 1.3A 22mOhm DCR RDL Box
