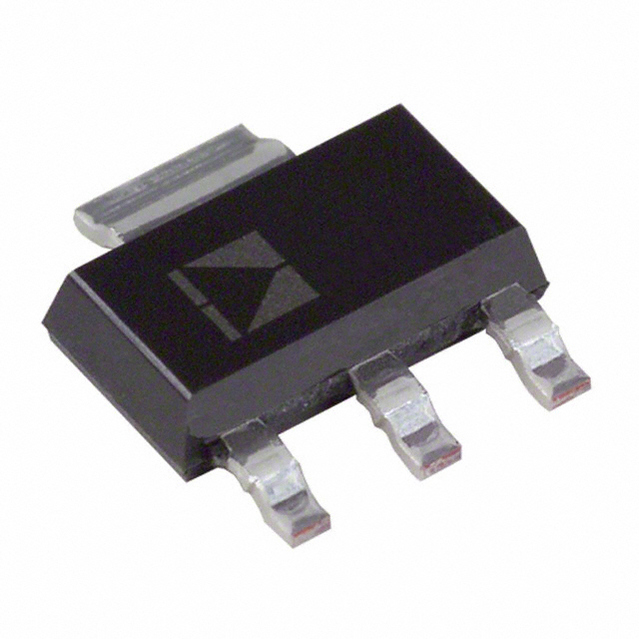

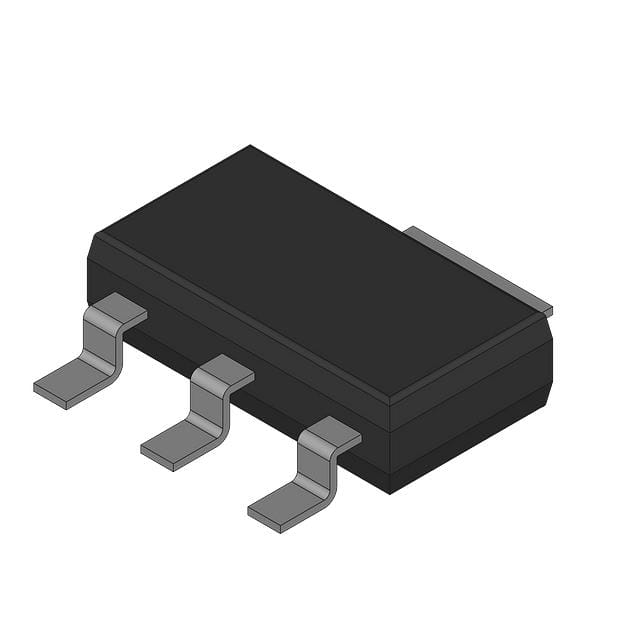

ADP3338AKCZ-1.5-RL

LDO Regulator Pos 1.5V 1.6A 4Pin3+Tab SOT-223 T/R

GENERAL DESCRIPTION

The ADP3338 is a member of the ADP33xx family of precision, low dropout LDO, anyCAP voltage regulators. The ADP3338 operates with an input voltage range of 2.7V to 8V and delivers a load current up to 1A. The ADP3338 stands out from conventional LDOs with a novel architecture and an enhanced process that offers performance advantages and higher output current than its competition. Its patented design requires only a 1µF output capacitor for stability.

FEATURES

High accuracy over line and load: ±0.8% @ 25°C, ±1.4% over temperature

Ultralow dropout voltage: 190mV typ @ 1A

Requires only CO= 1.0µF for stability

anyCAP is stable with any type of capacitor including MLCC

Current and thermal limiting

Low noise

2.7V to 8V supply range

−40°C to +85°C ambient temperature range

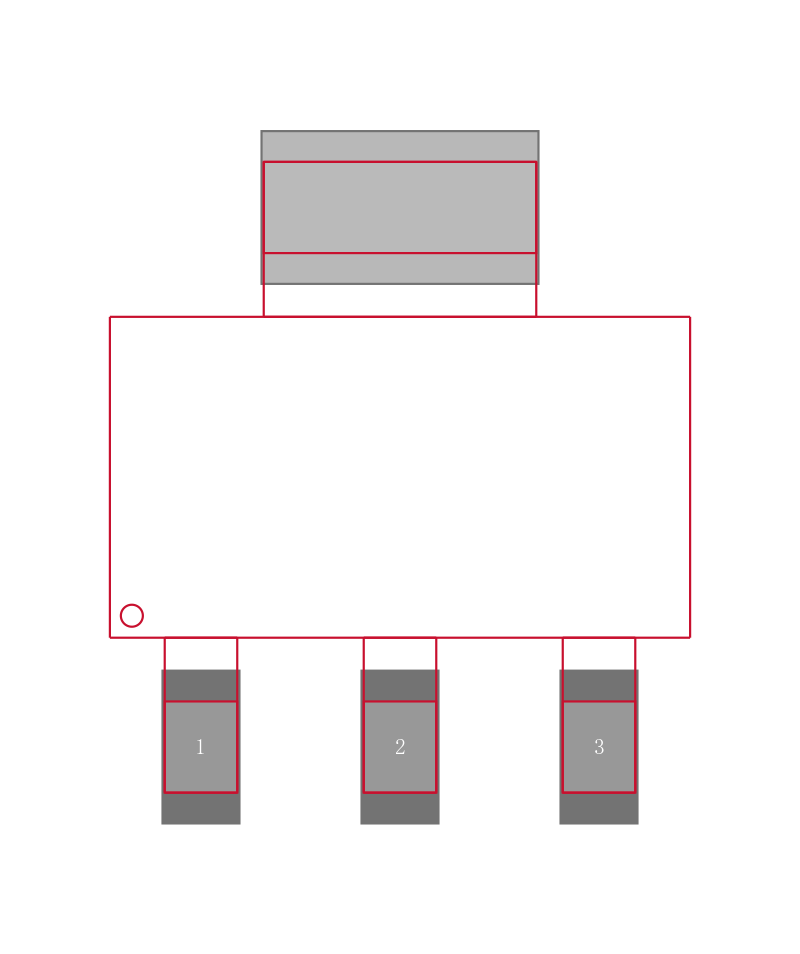

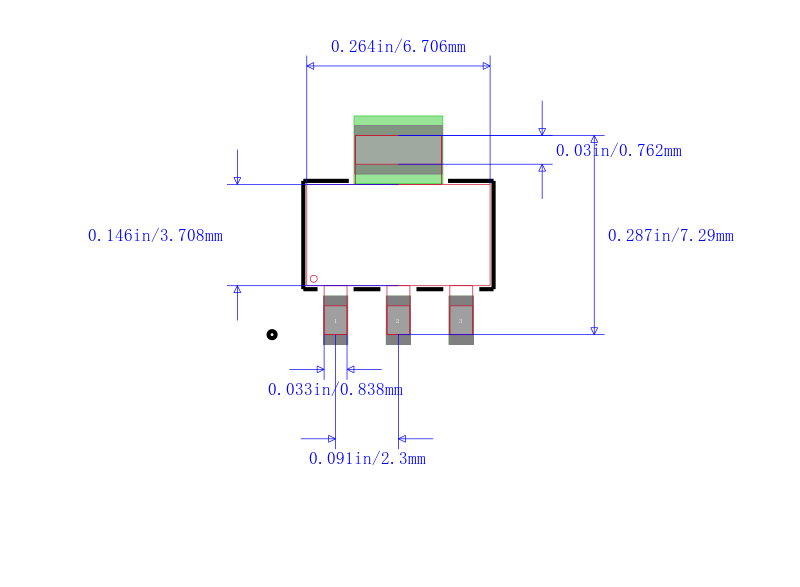

SOT-223 package

APPLICATIONS

Notebook, palmtop computers

SCSI terminators

Battery-powered systems

Bar code scanners

Camcorders,cameras

Home entertainment systems

Networking systems

DSP/ASIC supplies
