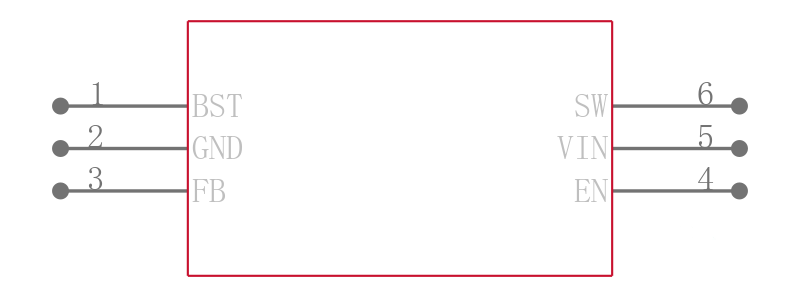

ADP2300AUJZ-R2

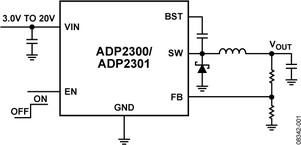

1.2 A ， 20 V ， 700千赫/ 1.4 MHz的非同步降压型稳压器 1.2 A, 20 V, 700 kHz/1.4 MHz, Nonsynchronous Step-Down Regulator

降压 开关稳压器 IC 正 可调式 0.8V 1 输出 1.2A SOT-23-6 细型，TSOT-23-6

得捷:
IC REG BUCK ADJ 1.2A TSOT6

立创商城:
降压型 Vin=3V~20V Vout=800mV~17V 1.2A

艾睿:
Adjust the voltage level of your devices with this step down ADP2300AUJZ-R2 DC to DC converter from Analog Devices. This converter&s;s single output can produce a current up to 1.2 A. With a small input voltage of 3 V and a max of 20 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 0.8 to 17 V, this is power management at its best. This converter is 91 % efficient. It has a switching frequency of 700Typ kHz. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This converter has an operating temperature range of -40 °C to 125 °C.

Chip1Stop:
降圧 スイッチングレギュレータIC ポジティブ 可変 0.8V 1 出力 1.2A SOT-23-6薄型、TSOT-23-6 Conv DC-DC Single Step Down 3V to 20V 6-Pin TSOT T/R

Verical:
Conv DC-DC 3V to 20V Synchronous Step Down Single-Out 0.8V to 17V 1.2A 6-Pin TSOT T/R

DeviceMart:
IC REG BUCK ADJ 1.2A 6TSOT
