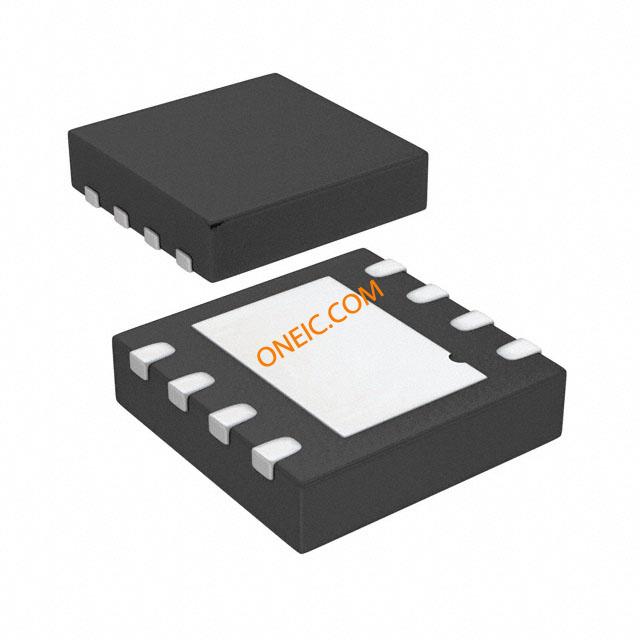

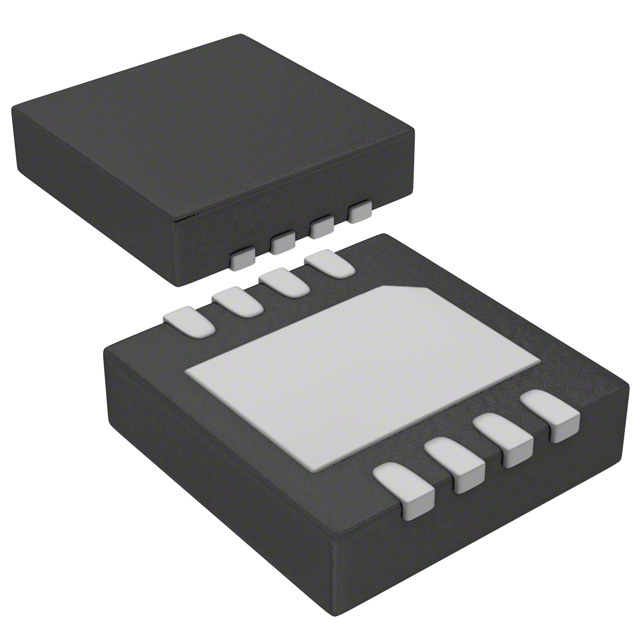

ANALOG DEVICES ADP7102ACPZ-2.5-R7 稳压器, 固定LDO, 3.3V至20V输入, 2.5V/300mA输出, LFCSP-8
PMIC - 稳压器 - 线性 正 固定 输出 300mA 8-LFCSP-WD(3x3)
得捷:
IC REG LINEAR 2.5V 300MA 8LFCSP
立创商城:
20V 300 mA 低噪声 CMOS LDO
e络盟:
稳压器, 固定LDO, 3.3V至20V输入, 2.5V/300mA输出, LFCSP-8
艾睿:
Use this LDO ADP7102ACPZ-2.5-R7 linear regulator from Analog Devices to vary your voltage levels to your desired level. It has an overall accuracy of ±0.8 %. Its typical dropout voltage at current is 0.2@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 3.3 V that does not exceed 20 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Using a load regulation of 0.2%/ATyp and line regulation of 0.015%/V is needed for a programmable DC power supply. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.
Newark:
# ANALOG DEVICES ADP7102ACPZ-2.5-R7 LDO Voltage Regulator - Fixed, 3.3V-20V input, 2.5Vnom/300mA out, LFCSP-8
DeviceMart:
IC REG LDO 2.5V .3A 8LFCSP
输出接口数 1
输出电压 2.5 V
输出电流 300 mA
针脚数 8
跌落电压 0.2V @300mA
输入电压Max 20 V
输入电压Min 3.3 V
输出电压Min 2.5 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.8 %
安装方式 Surface Mount
引脚数 8
封装 LFCSP-8
封装 LFCSP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
