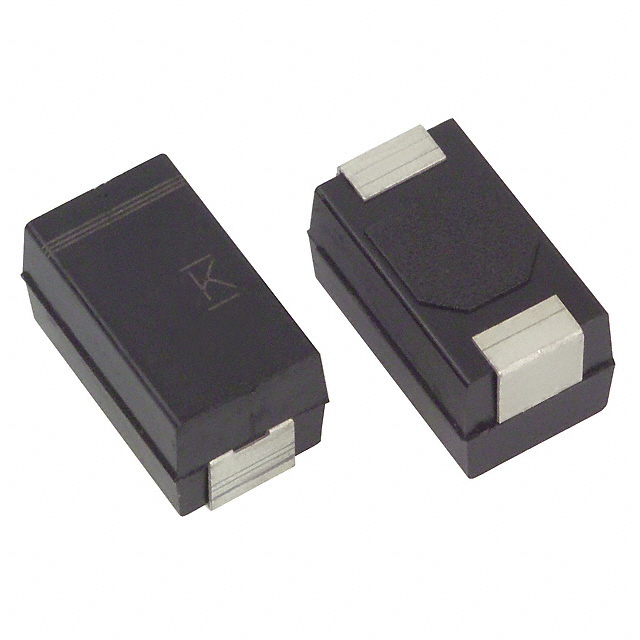

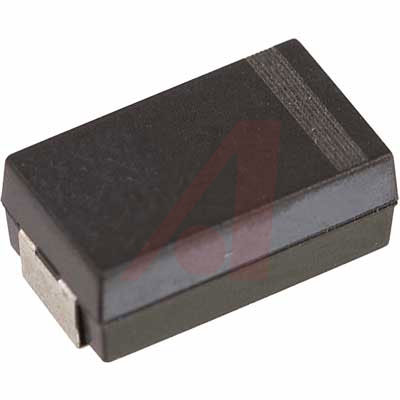

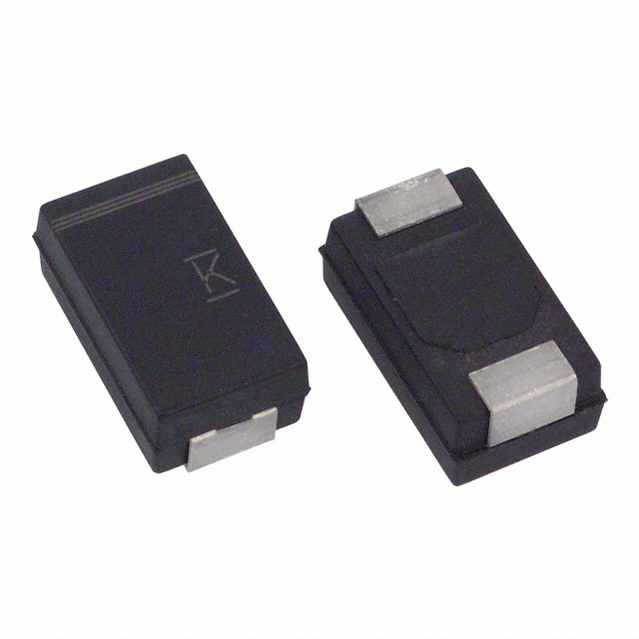

有机铝电容器 ALUMINUM ORGANIC CAPACITORS
铝电解器
得捷:
CAP ALUM POLY 150UF 20% 4V SMD
立创商城:
150uF ±20% 4V
艾睿:
If you need a device that can support a change in the load of a circuit, the A700D157M004ATE018 conductive polymer aluminum solid capacitor from Kemet is the component you need. It can withstand a voltage of 4 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Its leakage current is 36@5Min μA. This product is 7.3 mm long, 2.8 mm tall and 4.3 mm deep. It has a tolerance of 20%.
Allied Electronics:
Capacitor; Aluminum Organic; 150 uF; 20%; 4 VDC; SMT; 7343; ESR 0.018 Ohms; Tape & Reel
安富利:
Cap Aluminum 150uF 4V 20% 7.3 X 4.3 X 2.8mm SMD 0.018 Ohm 3700mA 125°C Plastic T/R
Chip1Stop:
Cap Aluminum 150uF 4V 20% 7.3 X 4.3 X 2.8mm SMD 0.018 Ohm 3700mA 125 C Plastic T/R
Verical:
Cap Aluminum Organic 150uF 4VDC 20% 7.3 X 4.3 X 2.8mm SMD 0.018 Ohm 3700mA 2000h 125C T/R
Newark:
# KEMET A700D157M004ATE018 Electrolytic Capacitor, 150 µF, 4 V, A700 Series, 2917 [7343 Metric], -55 °C
额定电压DC 4.00 V
电容 150 µF
等效串联电阻ESR 18.0 mΩ
容差 ±20 %
纹波电流 3700 mA
纹波电流低频 3.7A @100kHz
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 4 V
安装方式 Surface Mount
引脚数 2
封装公制 7343-31
封装 7343

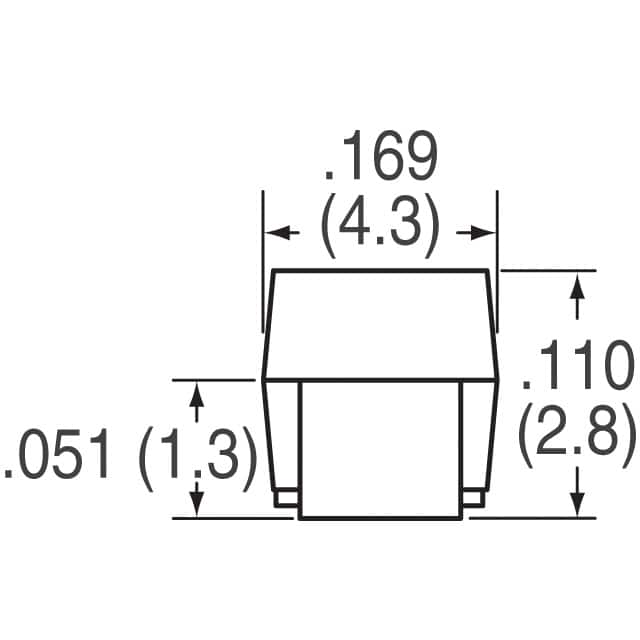

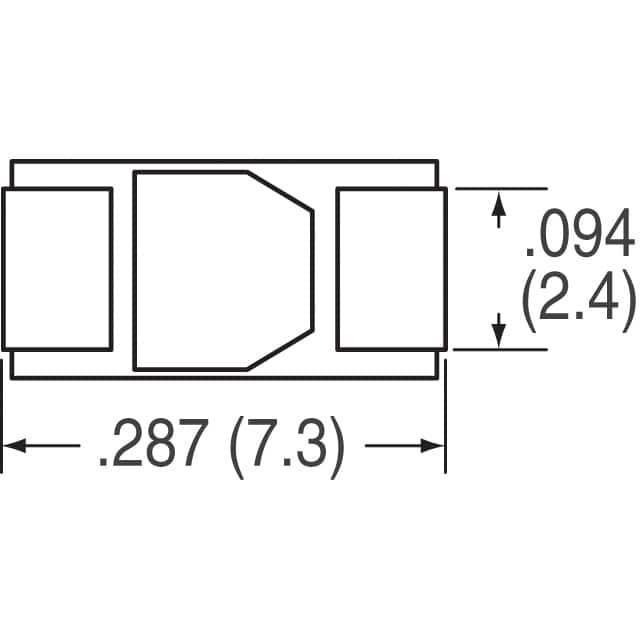

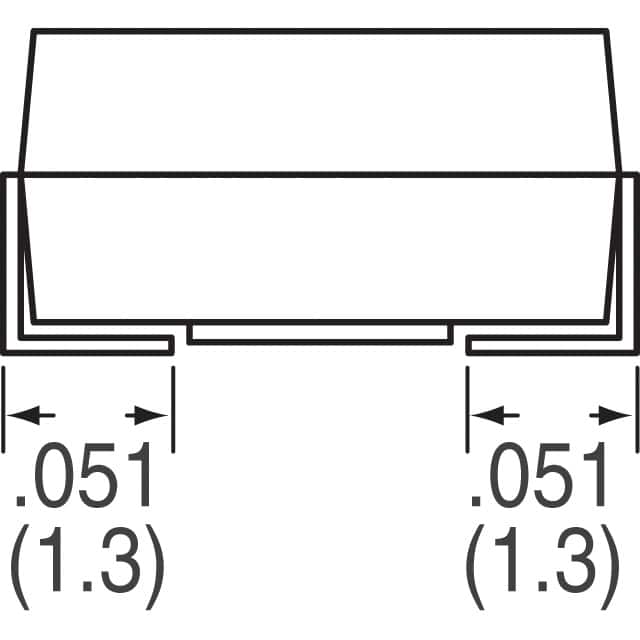

长度 7.3 mm
宽度 4.3 mm
高度 2.8 mm
封装公制 7343-31
封装 7343
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命(小时) 2000 h
制造应用 -, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
A700D157M004ATE018 KEMET Corporation 基美 | 当前型号 | 当前型号 |
A700D157M004ATE015 基美 | 类似代替 | A700D157M004ATE018和A700D157M004ATE015的区别 |
