LDO(低压降)线性电压调节器,高达 1.65V 输出,Analog Devices### LDO(低压降)线性电压调节器 - Analog Devices低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,高达 1.65V 输出,Analog Devices
Analog Devices 低压降(LDO)线性调节器提供快速瞬态响应、极佳的线路和负载调节,并且具有宽输入电压范围。
### LDO(低压降)线性电压调节器 - Analog Devices
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
欧时:
LDO(低压降)线性稳压器,高达 1.65V 输出,Analog DevicesAnalog Devices 低压降(LDO)线性调节器提供快速瞬态响应、极佳的线路和负载调节,并且具有宽输入电压范围。### LDO(低压降)线性电压调节器 - Analog Devices低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 1.5V 1.5A SOT223-3
立创商城:
ADP3339AKCZ-1.5-R7
贸泽:
Linear Voltage Regulators High-Acc 1.5A Ultralow IQ
艾睿:
Use the LDO ADP3339AKCZ-1.5-R7 linear regulator from Analog Devices to maintain a constant output voltage. Its typical dropout voltage at current is 0.23@1.5A|0.18@1A|0.15@500mA|0.1@100mA V. It has an overall accuracy of ±0.9 %. This voltage regulation device&s;s single output can produce a current up to 2Typ A. With a small input voltage of 2.8 V and a max of 6 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.004mV/mATyp and line regulation of 0.04mV/VTyp. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is positive. The maximum dropout voltage is 0.48@1.5A|0.3@500mA|0.38@1A V.
DeviceMart:
IC REG LDO 1.5V 1.5A SOT-223
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5V 1.5A SOT-223-3
输出接口数 1
输入电压DC 6.00V max
输出电压 1.5 V
输出电流 1.5 A
供电电流 40.0 mA
静态电流 0.13 mA
跌落电压 0.1V @100mA,0.15V @500mA,0.23V @1.5A,0.18V @1A
输入电压Max 6 V
输入电压Min 2.8 V
输出电压Min 1.5 V
输出电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.9 %
输入电压 2.8V ~ 6V
安装方式 Surface Mount
引脚数 4

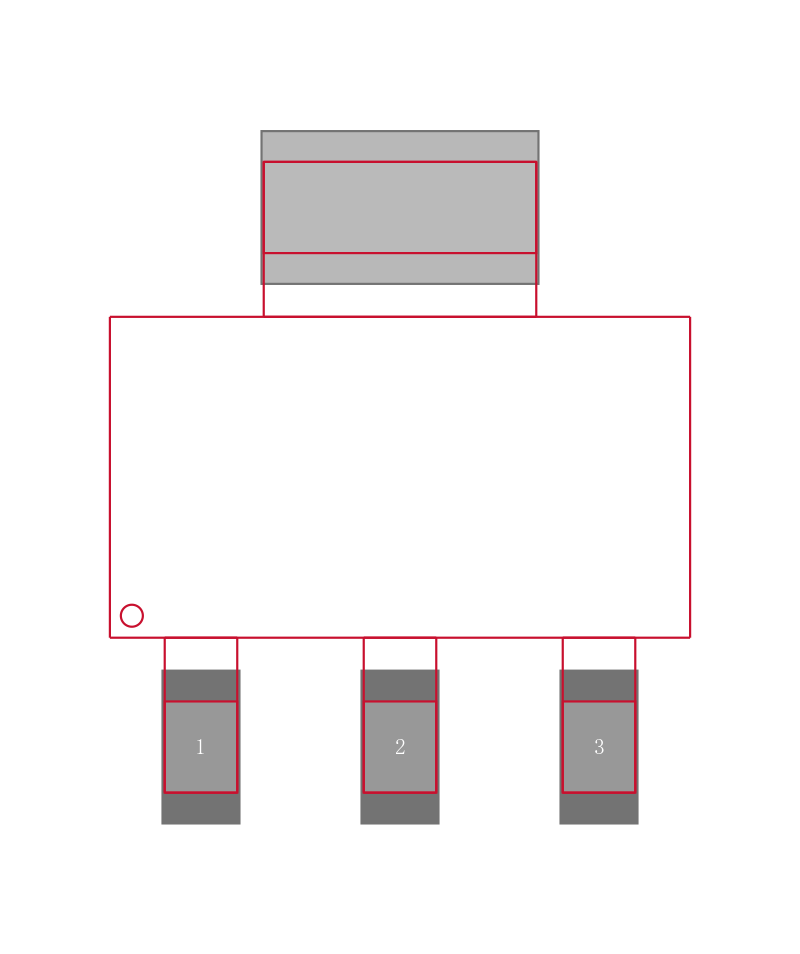

封装 SOT-223-3
长度 6.5 mm
宽度 3.5 mm
高度 1.6 mm
封装 SOT-223-3
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADP3339AKCZ-1.5-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADP3339AKC-1.5-RL7 亚德诺 | 类似代替 | ADP3339AKCZ-1.5-R7和ADP3339AKC-1.5-RL7的区别 |
ADP3339AKCZ-1.5-RL 亚德诺 | 类似代替 | ADP3339AKCZ-1.5-R7和ADP3339AKCZ-1.5-RL的区别 |
ADP3339AKC-1.5-RL 亚德诺 | 类似代替 | ADP3339AKCZ-1.5-R7和ADP3339AKC-1.5-RL的区别 |
