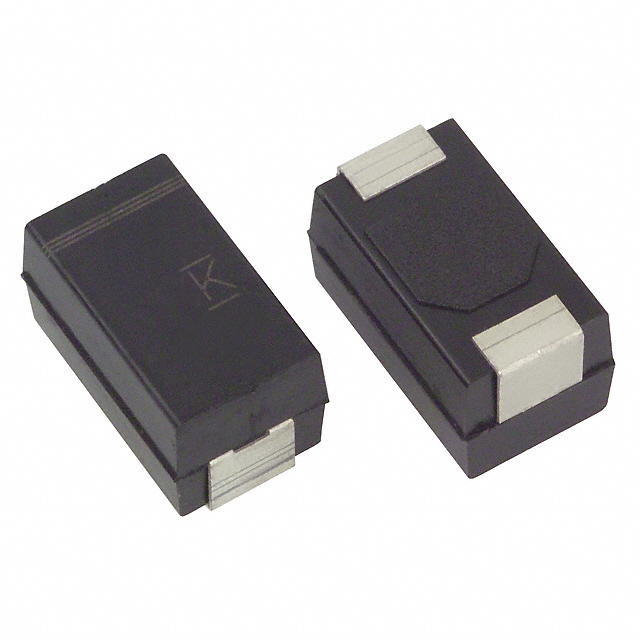

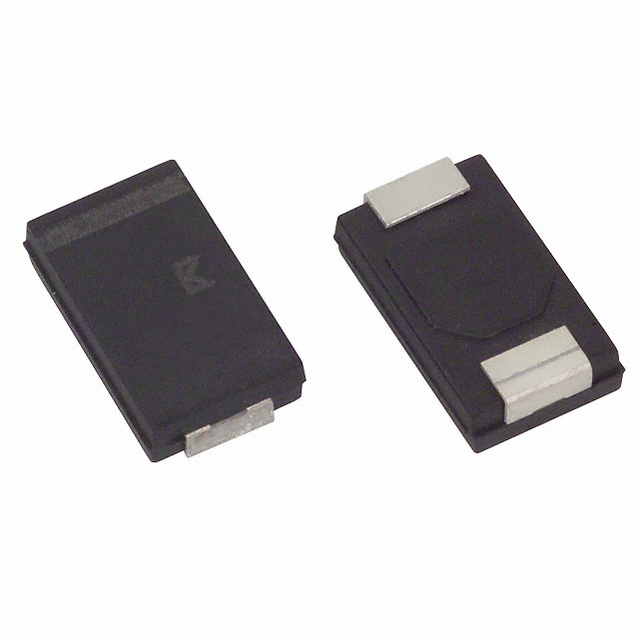

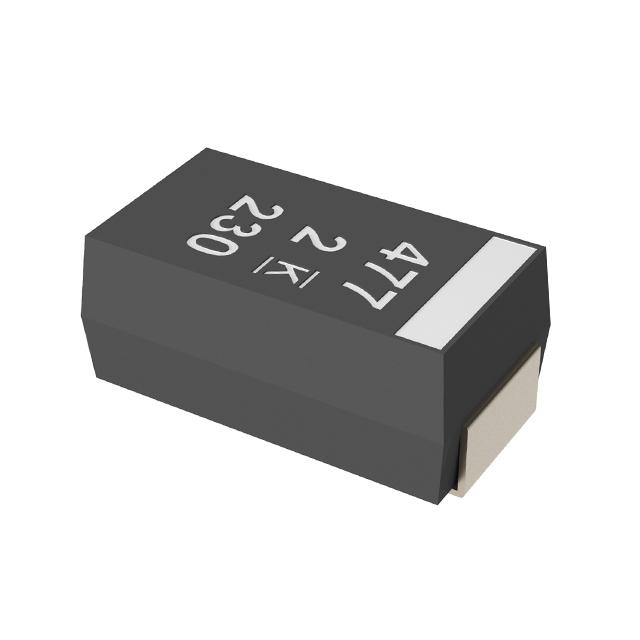

7343 10uF ±20% 12.5V
Kemet"s conductive polymer aluminum solid capacitor can easily support changes to the input load into an integrated circuit. It can withstand a voltage of 12.5 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has a tolerance of 20%. This product is 7.3 mm long, 2Max mm tall and 4.3 mm deep. Its leakage current is 5@5Min μA.
额定电压DC 12.5 V
电容 10 µF
等效串联电阻ESR 40 mΩ
容差 ±20 %
纹波电流 2.6 A
纹波电流低频 2.6A @100kHz
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 12.5 V
安装方式 Surface Mount
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 2 mm
封装 7343
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
寿命（小时） 2000 h
制造应用 通用, -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
A700V106M12RATE040 KEMET Corporation 基美 | 当前型号 | 当前型号 |
A700V106M12RATE055 基美 | 完全替代 | A700V106M12RATE040和A700V106M12RATE055的区别 |
A700V106M12RATE060 基美 | 功能相似 | A700V106M12RATE040和A700V106M12RATE060的区别 |
A700V106M12RATE0407280 基美 | 功能相似 | A700V106M12RATE040和A700V106M12RATE0407280的区别 |
