ADM1070ARTZ-REEL

Hot Swap Controller 1CH -80V 6Pin SOT-23 T/R

Product Details

The ADM1070 -48 V hot swap controller is designed for central office applications. The space-saving SOT-23 package occupies just 25% of the board area of an 8 pin SOIC solution. The device utilizes a linear current control method and protects the supply from in-rush currents board insertion and short circuits board failure. The ADM1070 also provides protection during voltage steps associated with card re-seating. It current limits under all conditions.

**Applications**

.

Central Office Switching

.

-48 V Distributed Power Systems

.

Negative Power Supply Control

### Features and Benefits

.

Allows safe board insertion and removal from a live -48V backplane

.

Operates from a typical -36V to -80V

.

Tolerates transients up to -200V limited by external components

.

Accurate programmable linear current limit for inrush control

.

Programmable time-out in current limit

.

Auto-restart after current limit time-out

.

Shutdown after 7 consecutive auto-restarts

.

Default timing provided with no osc cap

.

Single pin under/overvoltage detection

.

Programmable under/overvoltage time filter

.

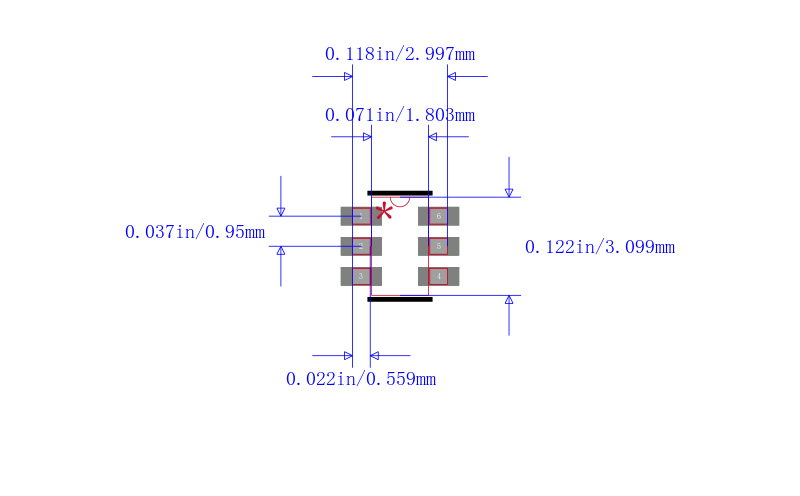

Small 6-pin SOT-23 package

.

See datasheet for additional information
