高精度，超低IQ ， 1A ，公司的anyCAP低压差稳压器 High Accuracy, Ultralow IQ, 1A, anyCAP Low Dropout Regulator
GENERAL DESCRIPTION
The ADP3338 is a member of the ADP33xx family of precision, low dropout LDO, anyCAP voltage regulators. The ADP3338 operates with an input voltage range of 2.7V to 8V and delivers a load current up to 1A. The ADP3338 stands out from conventional LDOs with a novel architecture and an enhanced process that offers performance advantages and higher output current than its competition. Its patented design requires only a 1µF output capacitor for stability.
FEATURES
High accuracy over line and load: ±0.8% @ 25°C, ±1.4% over temperature
Ultralow dropout voltage: 190mV typ @ 1A
Requires only CO= 1.0µF for stability
anyCAP is stable with any type of capacitor including MLCC
Current and thermal limiting
Low noise
2.7V to 8V supply range
−40°C to +85°C ambient temperature range
SOT-223 package
APPLICATIONS
Notebook, palmtop computers
SCSI terminators
Battery-powered systems
Bar code scanners
Camcorders,cameras
Home entertainment systems
Networking systems
DSP/ASIC supplies
输出接口数 1
输入电压DC 8.00V max
输出电压 3 V
输出电流 1 A
供电电流 30.0 mA
静态电流 0.11 mA
跌落电压 0.19V @1A
输入电压Max 8 V
输入电压Min 2.7 V
输出电流Max 1.6 A
精度 ±0.8 %
输入电压 ≤8 V
安装方式 Surface Mount
引脚数 3

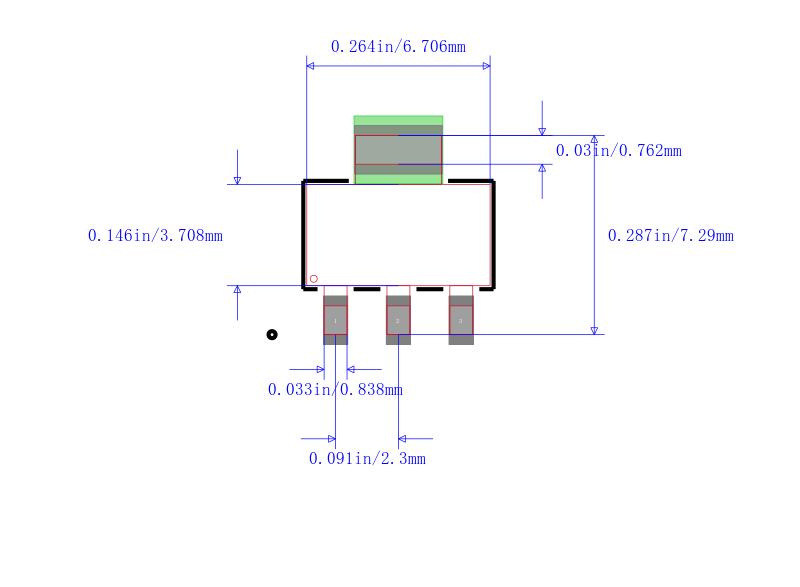

封装 TO-261-4
长度 6.5 mm
宽度 3.5 mm
高度 1.6 mm
封装 TO-261-4
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 No
