A3941KLPTR-T

A3941KLPTR-T 编带

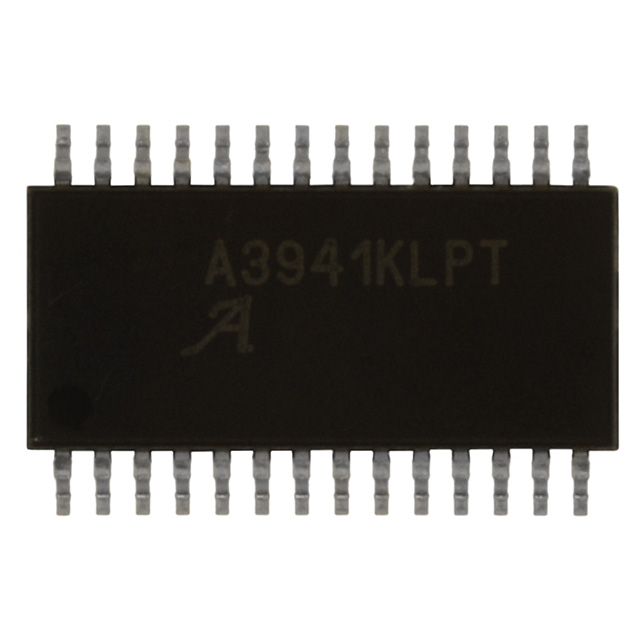

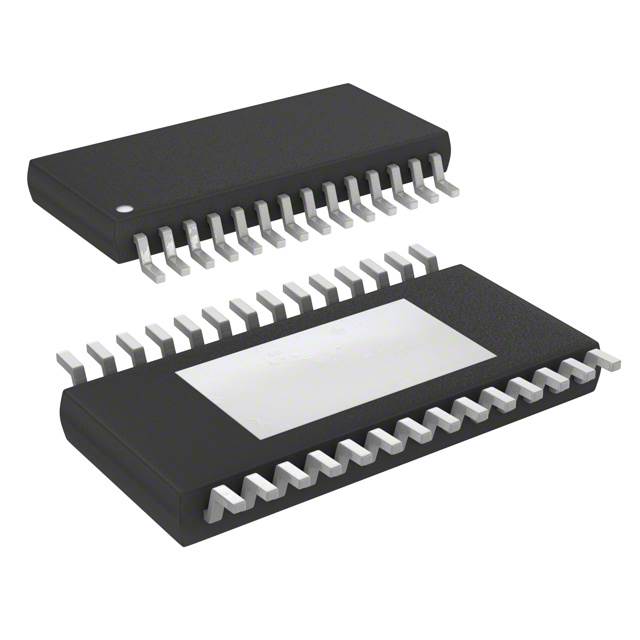

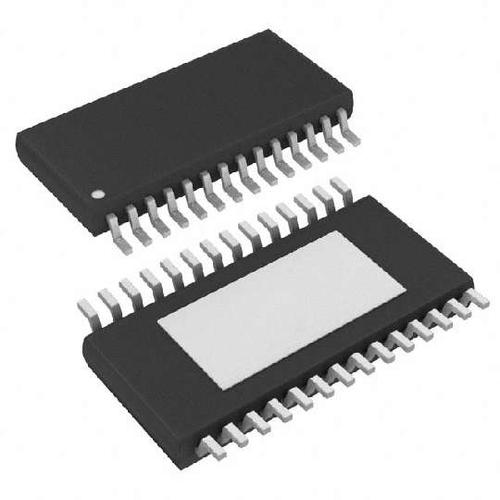

The is a full bridge MOSFET driver in 28 pin TSSOP package. This is a full bridge controller for use with external N channel power MOSFETs. A unique charge pump regulator provides full gate drive greater than 10V for battery voltages down to 7V and allows the A3941 to operate with reduced gate drive down to 5.5V. A bootstrap capacitor is used to provide above battery supply voltage required for N channel MOSFETs. An internal charge pump for high side drive allows DC 100% duty cycle operation. Integrated diagnostics provide indication of undervoltage, overtemperature, power bridge faults and can be configured to protect power MOSFETs under most short circuit conditions.

.

High side or low side PWM switching

.

Charge pump for low supply voltage operation

.

Top off charge pump for 100% PWM

.

Cross conduction protection with adjustable dead time

.

Supply voltage range from 5.5V to 50V

.

90ns turn off propagation delay

.

90ns turn on propagation delay

.

Diagnostics output

.

Low current sleep mode

.

Operating temperature range from -40°C to 150°C
