ADP3050ARZ-5-REEL

200 kHz时， 1的高电压降压型开关稳压器 200 kHz, 1 A High Voltage Step-Down Switching Regulator

Product Details

The ADP3050 is a current-mode monolithic buck step-down PWM switching regulator that contains a high current 1A switch and all control, logic and protection functions. It uses a unique compensation scheme which allows the use of any type of output capacitor tantalum, ceramic, electrolytic, OS-CON. Unlike some buck regulators, the design is not restricted to using a specific type of output capacitor or ESR value.

### Features and Benefits

.

Wide Input Voltage Range:

3.6 V to 30 V

.

Adjustable and Fixed 3.3 V, 5 V Output Options

.

Integrated 1 A Power Switch

.

Uses Small Surface-Mount Components

.

Cycle-By-Cycle Current Limiting

.

Peak Input Voltage 100 ms:

60 V

.

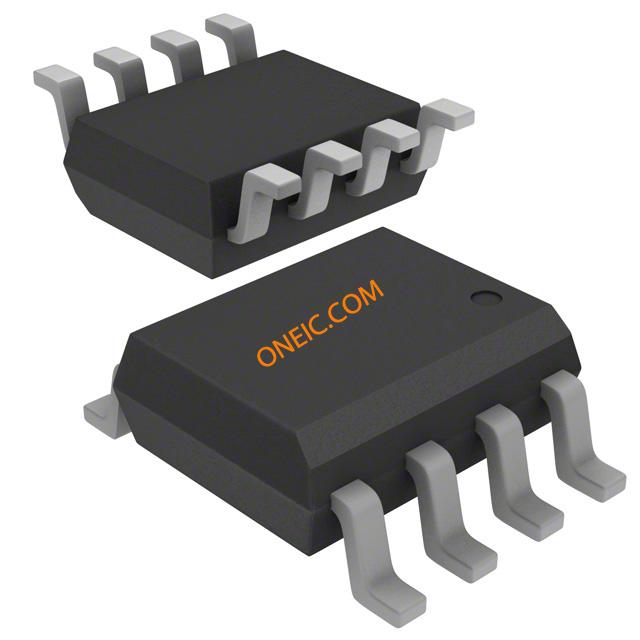

Thermally Enhanced 8-Lead

SOIC Package

.

Configurable as a Buck,

Inverter and SEPIC Regulator
