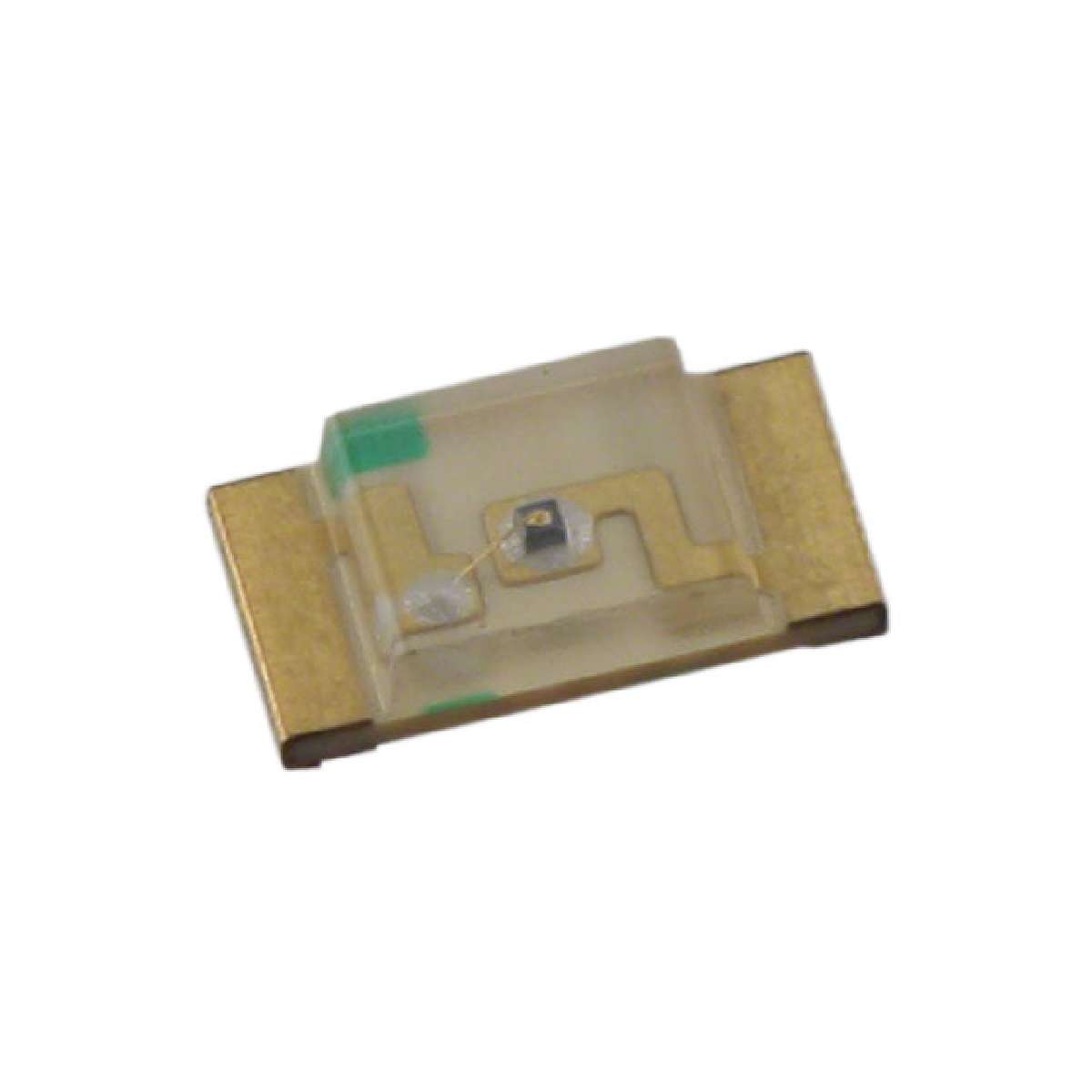

1206 120° 水色透明 100 mcd 1.85 V 贴片 LED 灯 表面贴装
红色 640nm 指示 - 分立 1.85V 1206(3216 公制)
得捷:
LED RED CLEAR CHIP SMD
贸泽:
标准LED-SMD RED WATER CLEAR
艾睿:
LED Uni-Color Red 660nm 2-Pin SMD T/R
Allied Electronics:
APT3216SRCPRV Red LED, 640 nm 3216 1206 Clear, Rectangle Lens SMD package
安富利:
LED Uni-Color Red 655nm Chip LED 2-Pin SMD T/R
富昌:
红色 1206 120° 水色透明 100 mcd 1.85 V 贴片 LED 灯 表面贴装
Chip1Stop:
LED Uni-Color Red 660nm 2-Pin SMD T/R
Win Source:
LED RED CLEAR CHIP SMD / Red 640nm LED Indication - Discrete 1.85V 1206 3216 Metric
额定功率 75 mW
正向电压 1.85 V
波长 640 nm
发光强度 80 mcd
视角 120°
峰值波长 660 nm
耗散功率 75 mW
测试电流 20 mA
正向电流 30 mA
正向电压Max 2.5 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 75 mW
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.75 mm
封装公制 3216
封装 1206
颜色 Red
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
