AD589JRZ-REEL

2 ，终端芯片1.2 V参考 2-Terminal IC 1.2 V Reference

Product Details

The AD589 is a two-terminal, low cost, temperature compensated bandgap voltage reference which provides a fixed 1.23 V output voltage for input currents between 50 µA and 5.0 mA.

The high stability of the AD589 is primarily dependent upon the matching and thermal tracking of the on-chip components. Analog Devices" precision bipolar processing and thin-film technology combine to provide excelent performance at low cost.

Additionally, the active circuit produces an output impedance ten times lower than typical low-TC Zener diodes. This feature allows operation with no external components required to maintain full accuracy under changing load conditions.

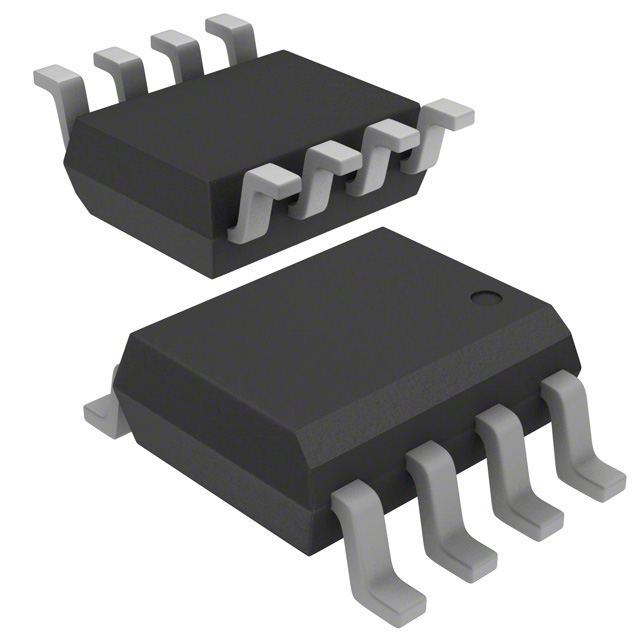

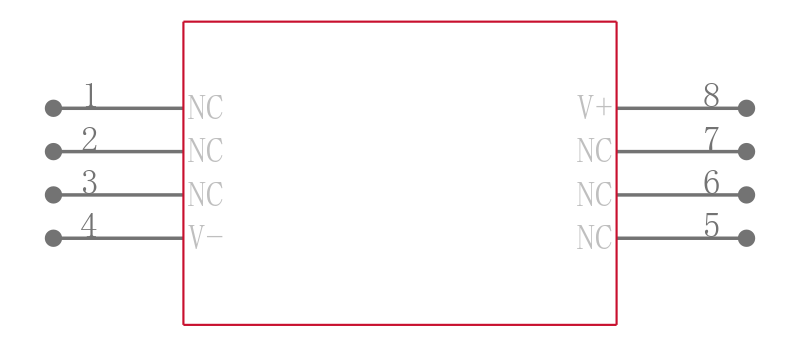

The AD589 is available in seven versions. The AD589J, K, L and M grades are specified for 0°C to +70°C operation, while the S, T, and U grades are rated for the full -55°C to +125°C temperature range. All grades are available in a metal can H-02A package. The AD589J is also available in an 8-pin SOIC package.

### Features and Benefits

.

Superior Replacement for Other 1.2 V References

.

Wide Operating Range: 50 µA to 5 mA

.

Low Power: 60 µW Total PD at 50 µA

.

Low Temperature Coefficient:

10 ppm/°C Max, 0°C to 70/°C AD589M

.

2-Terminal Zener Operation

.

Low Output Impedance: 0.6 Ω

.

No Frequency Compensation Required

.

Low Cost

.

MIL-STD-883 Compliant Versions Available
