Processor Supervisor 4.65V 4.75V to 5.5V 16Pin SOIC N T/R
监控器 开漏极,推挽式 通道 16-SOIC
得捷:
IC SUPERVISOR 1 CHANNEL 16SOIC
立创商城:
ADM691AARNZ-REEL
贸泽:
Supervisory Circuits 5V CMOS PROCESS I.C.
艾睿:
If your core processor fails to meet your circuit&s;s demands, use the ADM691AARNZ-REEL microprocessor supervisory circuit from Analog Devices as a backup. This device has a maximum power dissipation of 700 mW. Its maximum power dissipation is 700 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature range of -40 °C to 85 °C. It has a typical reset threshold voltage of 4.65 V, with a minimum of 4.5 V and a maximum of 4.75 V. This device has a minimum operating supply voltage of 0 V and a maximum of 5.5 V.
Chip1Stop:
Processor Supervisor 4.65V 4.75V to 5.5V Automotive 16-Pin SOIC N T/R
罗切斯特:
Processor Supervisor 4.65V 4.75V to 5.5V Automotive 16-Pin SOIC N T/R
电源电压DC 5.50V max
供电电流 100 µA
耗散功率 700 mW
阈值电压 4.65 V
复位电压Min 4.5 V
复位电压Max 4.75 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 700 mW
电源电压Max 5.5 V
电源电压Min 4.75 V
安装方式 Surface Mount

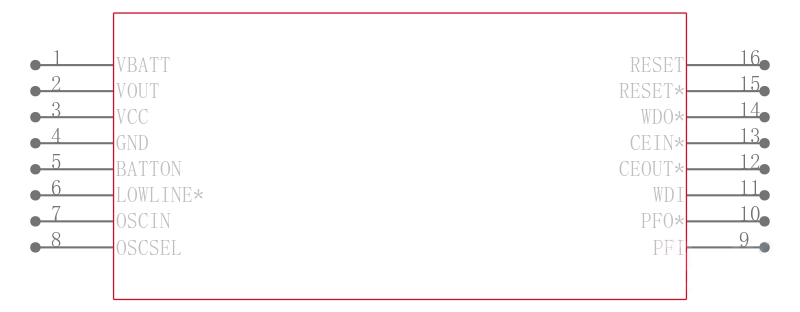

引脚数 16

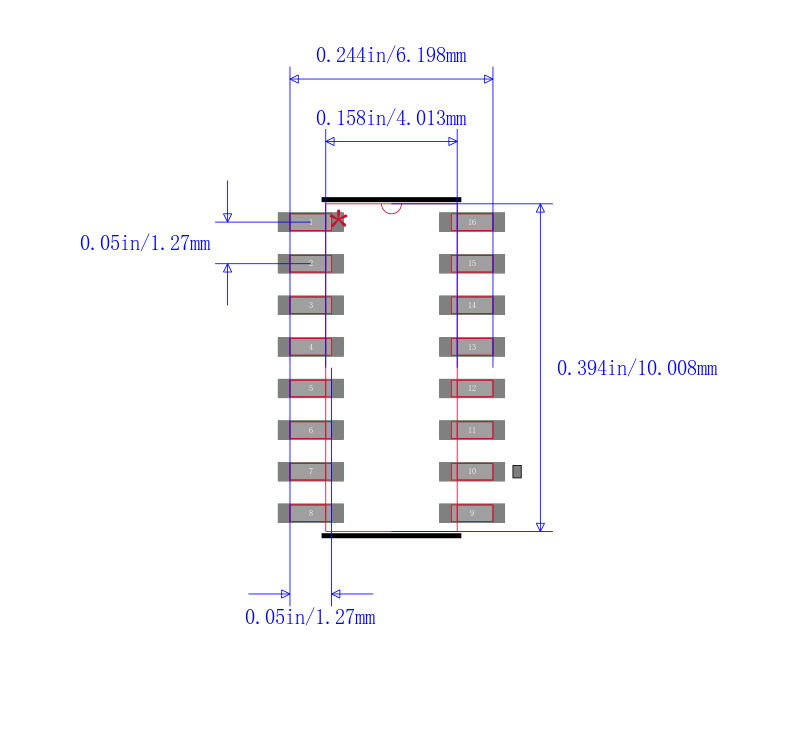

封装 SOIC-16
长度 10 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADM691AARNZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
ADM691AARN-REEL 亚德诺 | 完全替代 | ADM691AARNZ-REEL和ADM691AARN-REEL的区别 |
ADM691AARNZ 亚德诺 | 类似代替 | ADM691AARNZ-REEL和ADM691AARNZ的区别 |
ADM8691ARWZ 亚德诺 | 类似代替 | ADM691AARNZ-REEL和ADM8691ARWZ的区别 |
