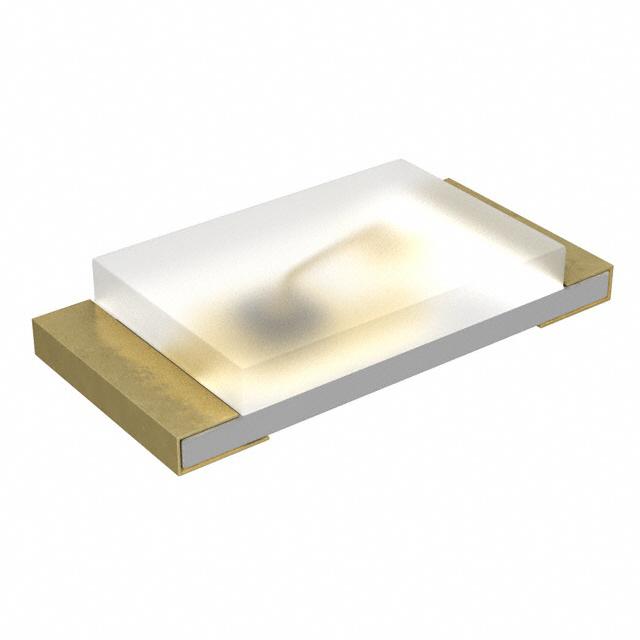

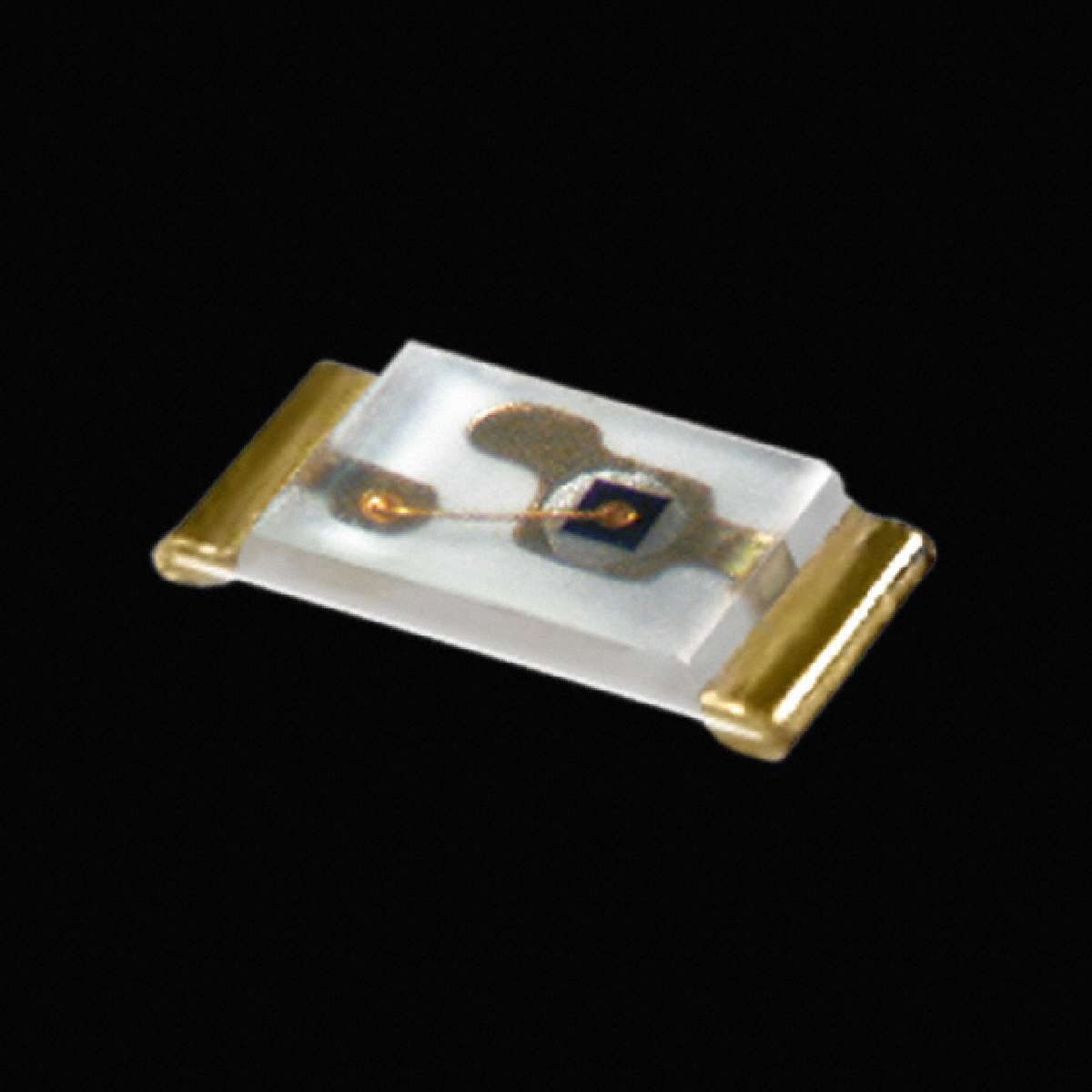

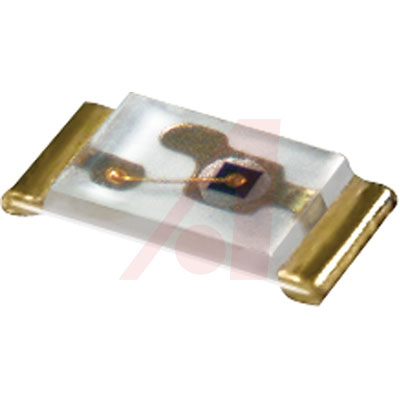

APG1608QBC/D

标准LED-SMD Blue, Water Clear 70mcd, 470nm

Company LLC. develops one of industry’s thinnest 0603 SMD with utmost reliability - Kingbright 0.25mm Ultra-Thin 0603 SMD LEDs APG1608 package. The element’s compact, ultra-thin design 1.6mm x 0.8mm x 0.25mm with a wide viewing angle of 120° extends significant advantages for backlighting, indicators, membrane applications, and further enhances design versatility and maneuverability for design engineers developing miniature electronic devices. Available in blue 470nm, green 525nm & 571nm, yellow 589nm, orange 605nm, and red 631nm, this vibrant and low power consumption device operates under current as low as 1mA and meets industrial temperature ratings of -40°C to +85°C. The product is specially designed for automatic pick-and-place mounting process to reduce manufacturing costs.

**Key Features:**

• 0.25mm in thickness

• 1.6mm x 0.8mm 0603 Chip SMD LED

• Wide viewing angle of 120°

• Operating current as low as 1mA

• Automation-friendly tape and reel package

• Tailored for various backlighting and indicator applications

• Color selections of blue 470nm, green 525nm & 571nm, yellow 589nm, orange 605nm, red 631nm
